The #9 Series is engineered with the same one-piece stamped base plate, brass gear, plastic button and knurled bushings used on the Sta-Tite™ guitar machine head. The string post length has been shortened to 1″P with the string hole .630” from the back of the base.
• Open gears
• 14:1 gear ratio
• 23/64” post hole
• Post length to hole: 16mm
• Overall post length: 21.3mm
• Weight per pc/per set: .7oz/2.8oz
• Max. string gauge: .064”
• Hardware included (bushings, screws)
• Drop-in replacement for: None at this time
Available in:
For Standard Ukuleles, 2 Treble and 2 Bass, Set of 4

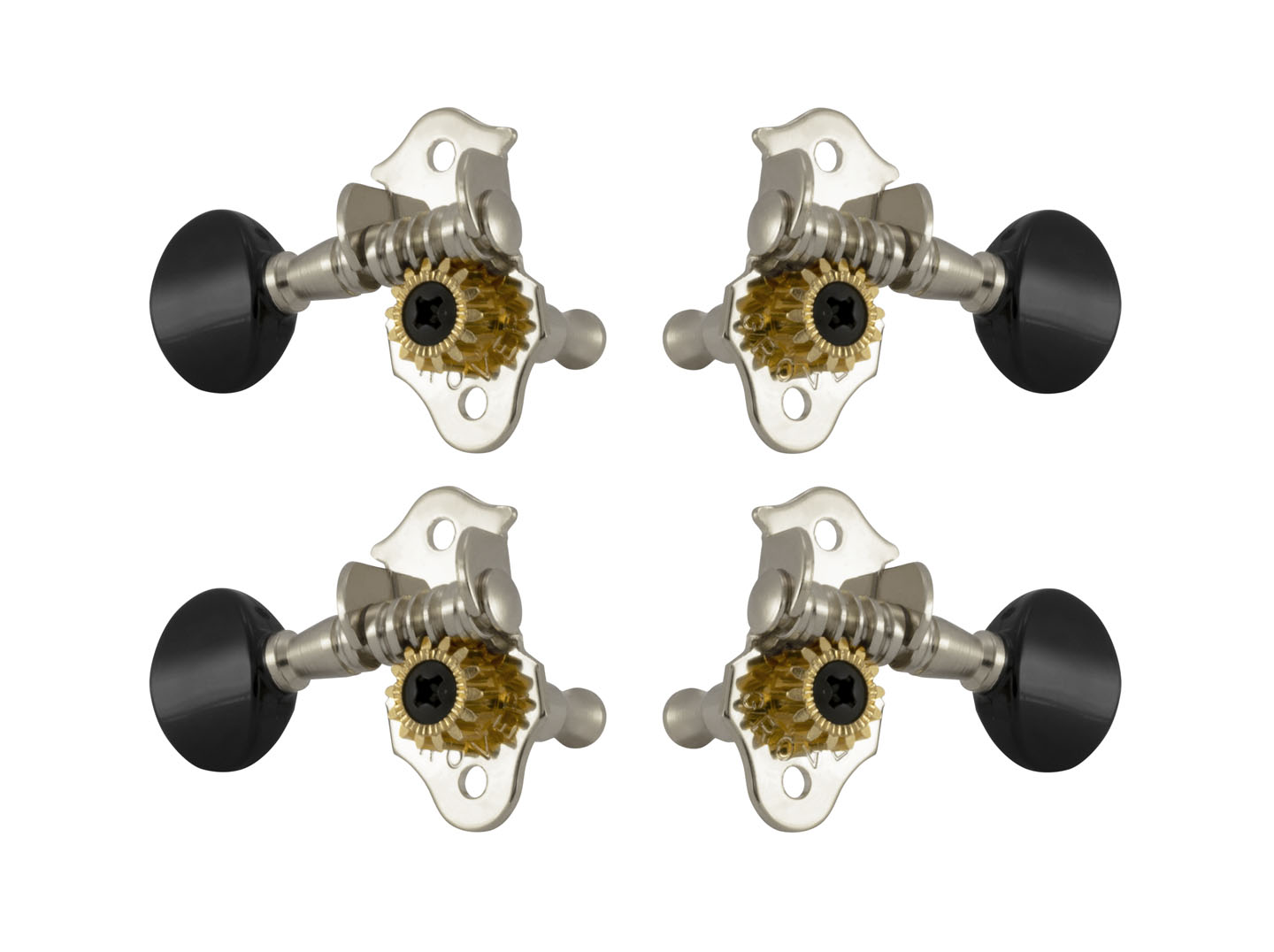

No. 9NB Nickel/Black Buttons

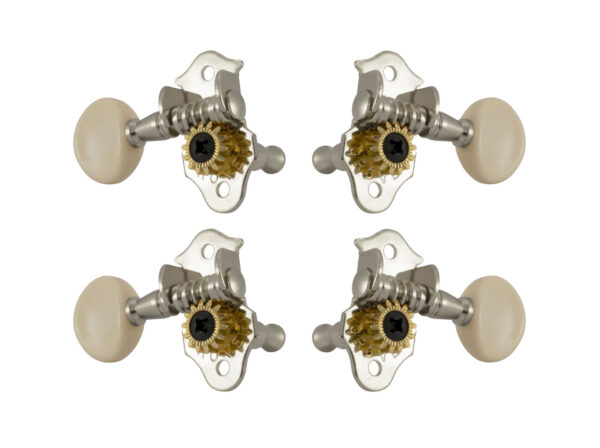

No. 9NW Nickel/White Buttons

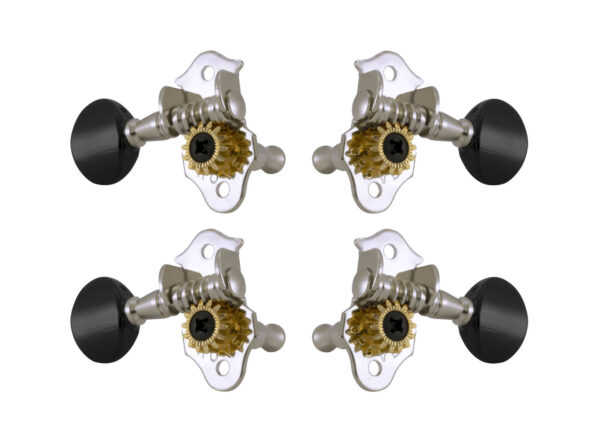

No. 9CB Chrome/Black Buttons

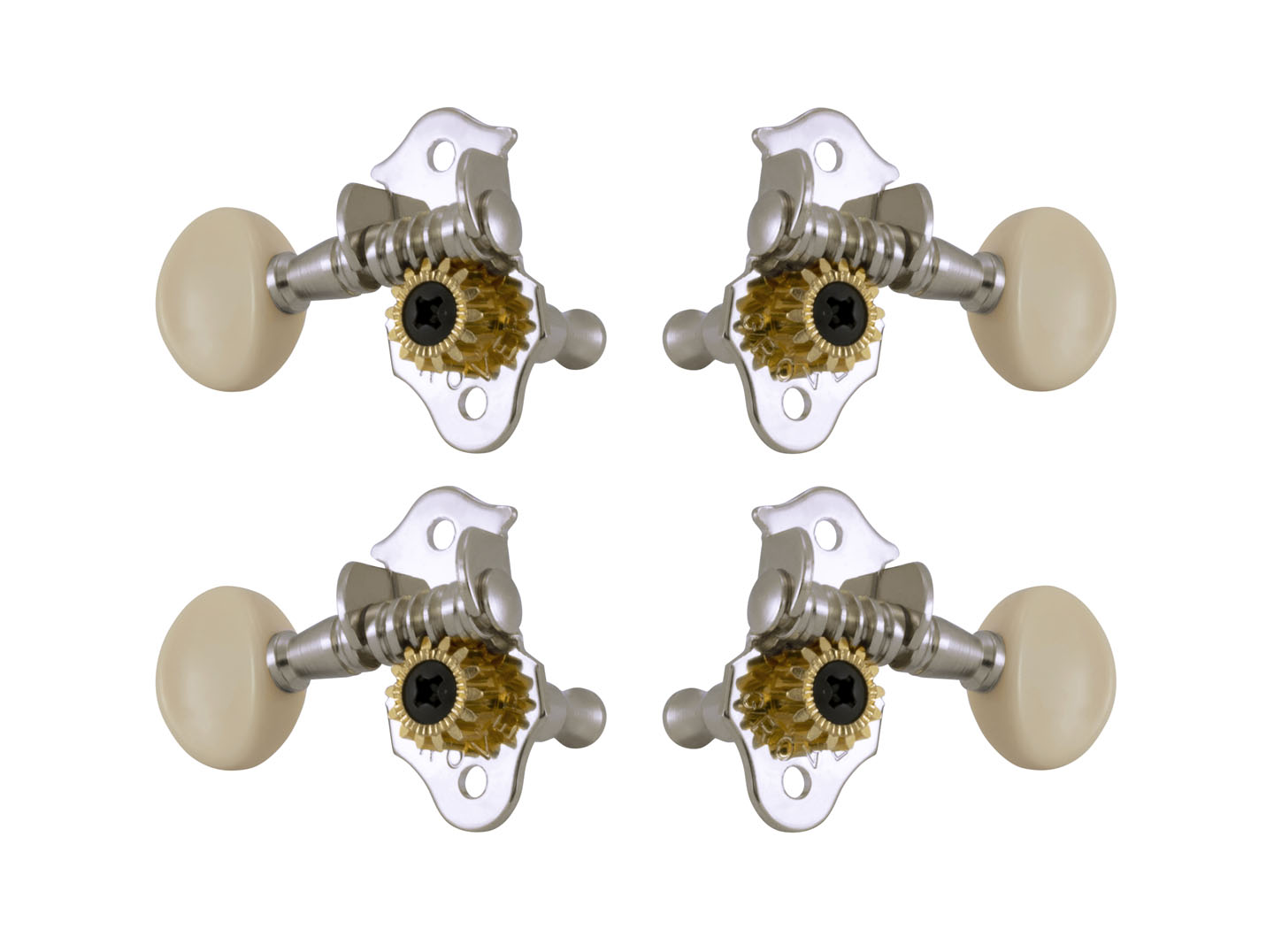

No. 9CW Chrome/White Buttons
No. 9GB Gold/Black Buttons

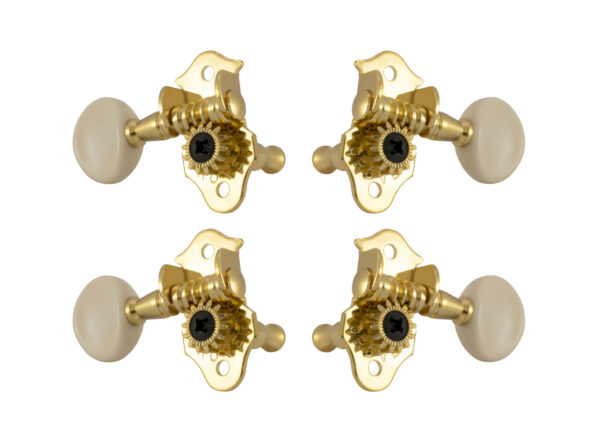

No. 9GW Gold/White Buttons
