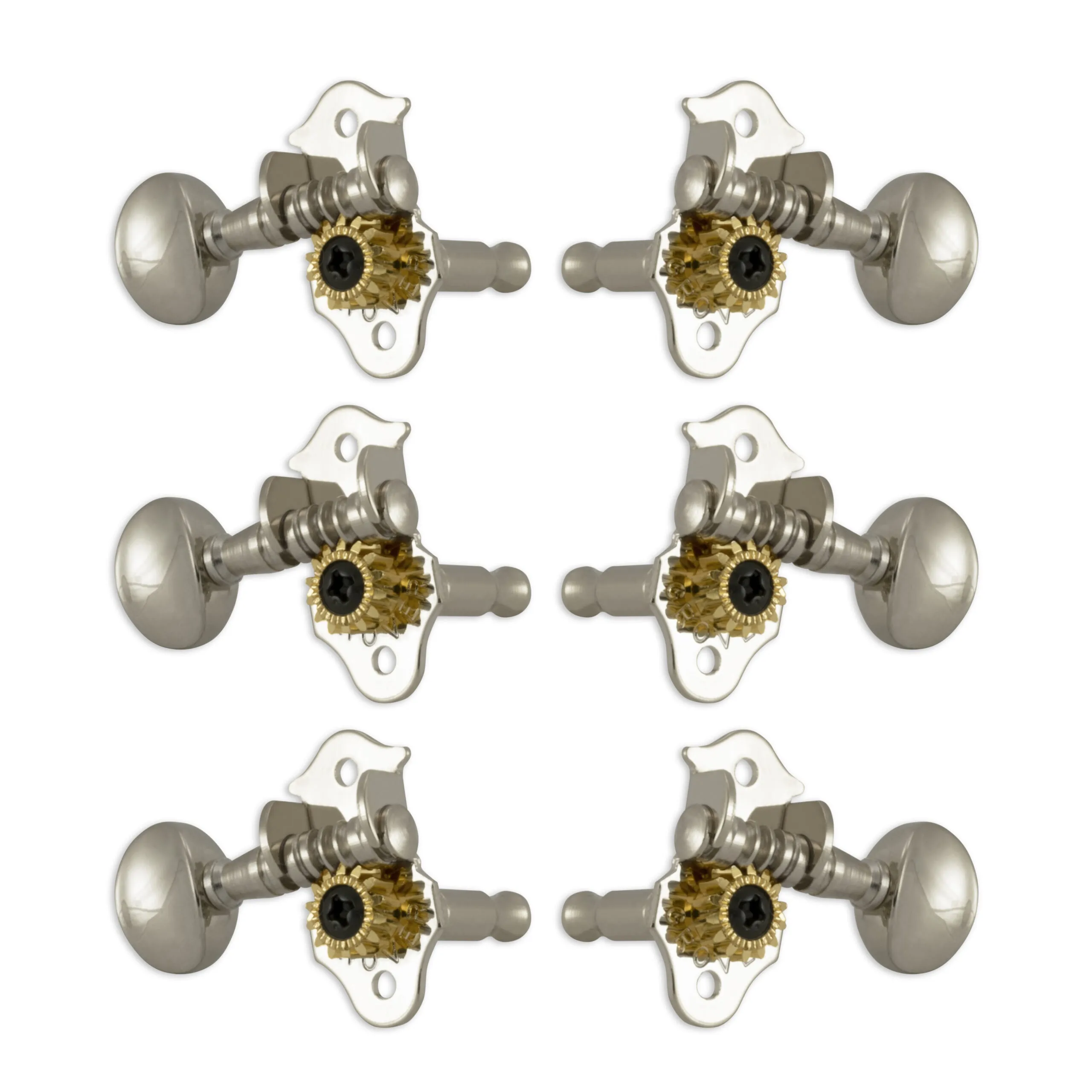

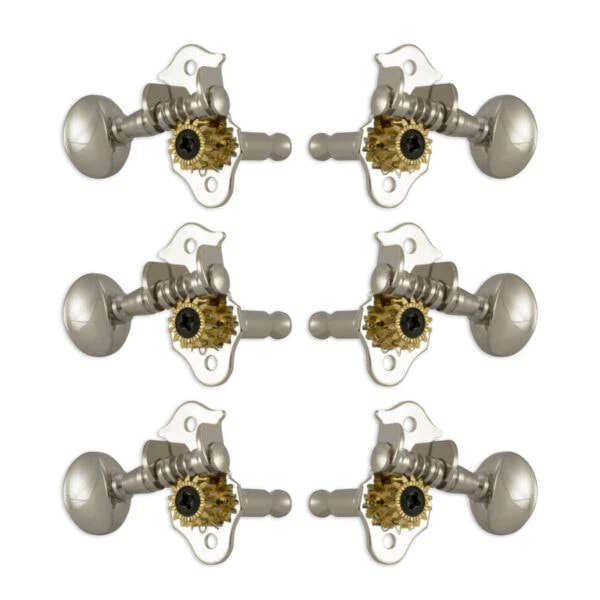

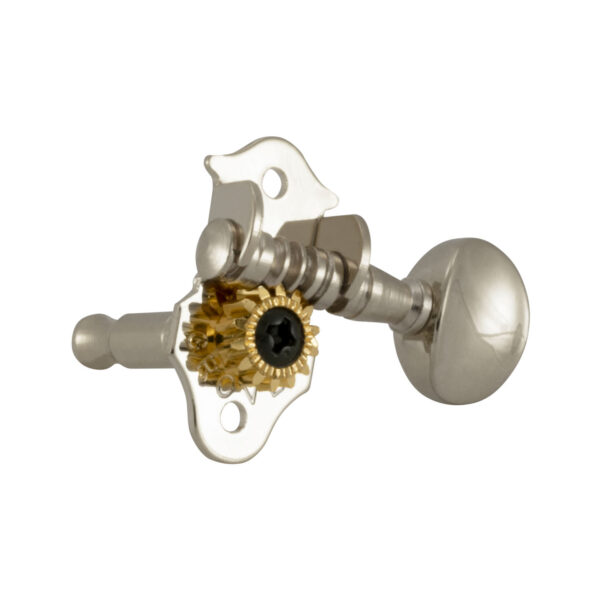

The 98 Series is classic in design and feature a stamped plate with round button. These classic machine heads offer smooth and accurate tuning.
- Open gears
- 14:1 gear ratio
Vertical (for solid headstock)
- 23/64” post hole
- Post length to hole: 22.53mm
- Overall post length: 28.77mm
- Weight per pc/per set: .8oz/4.8oz
- Max. string gauge: .074”
- Hardware included (bushings, screws)
- Drop-in replacement for: None at this time
Horizontal (for slotted headstock)
- 15/64” post hole
- Post length to 1st hole: 13mm
- Post length to 2nd hole: 11mm
- Overall post length: 27.6mm
- Weight per pc/per set: .8oz / 4.8oz
- Max. string gauge: .074”
- Hardware included (screws)
- Drop-in replacement for: None at this time
Available in:
For Solid Guitar Headstocks (Vertical), 3 Treble and 3 Bass, Set of 6
No. V98N Nickel
No. V98C Chrome
No. V98G Gold
For Slotted Guitar Headstocks (Horizontal), 3 Treble and 3 Bass, Set of 6
No. H98N Nickel
No. H98C Chrome
No. H98G Gold
