The 205 Series is the ultimate in sleek design and performance. Small and lightweight, these precision-made machine heads fit guitar headstocks that will not take full size machines. The mini buttons provide more space for player’s fingers (even large fingers) to tune strings. Gear ratio is 14:1. Sealed in lubrication keeps the mini perfect for a lifetime!
• Sealed-in, lubricated gears
• 14:1 gear ratio
• 25/64” post hole
• Post length to hole: 20.55mm
• Overall post length: 26.9mm
• Weight per pc/per set: 1.2oz/7.2oz
• Max. string gauge: .074”
• Hardware included (bushings, washers, screws)
• Drop-in replacement for: None at this time
Available in:
For standard guitars, 3 Treble and 3 Bass, Set of 6
No. 205N Nickel
No. 205C Chrome

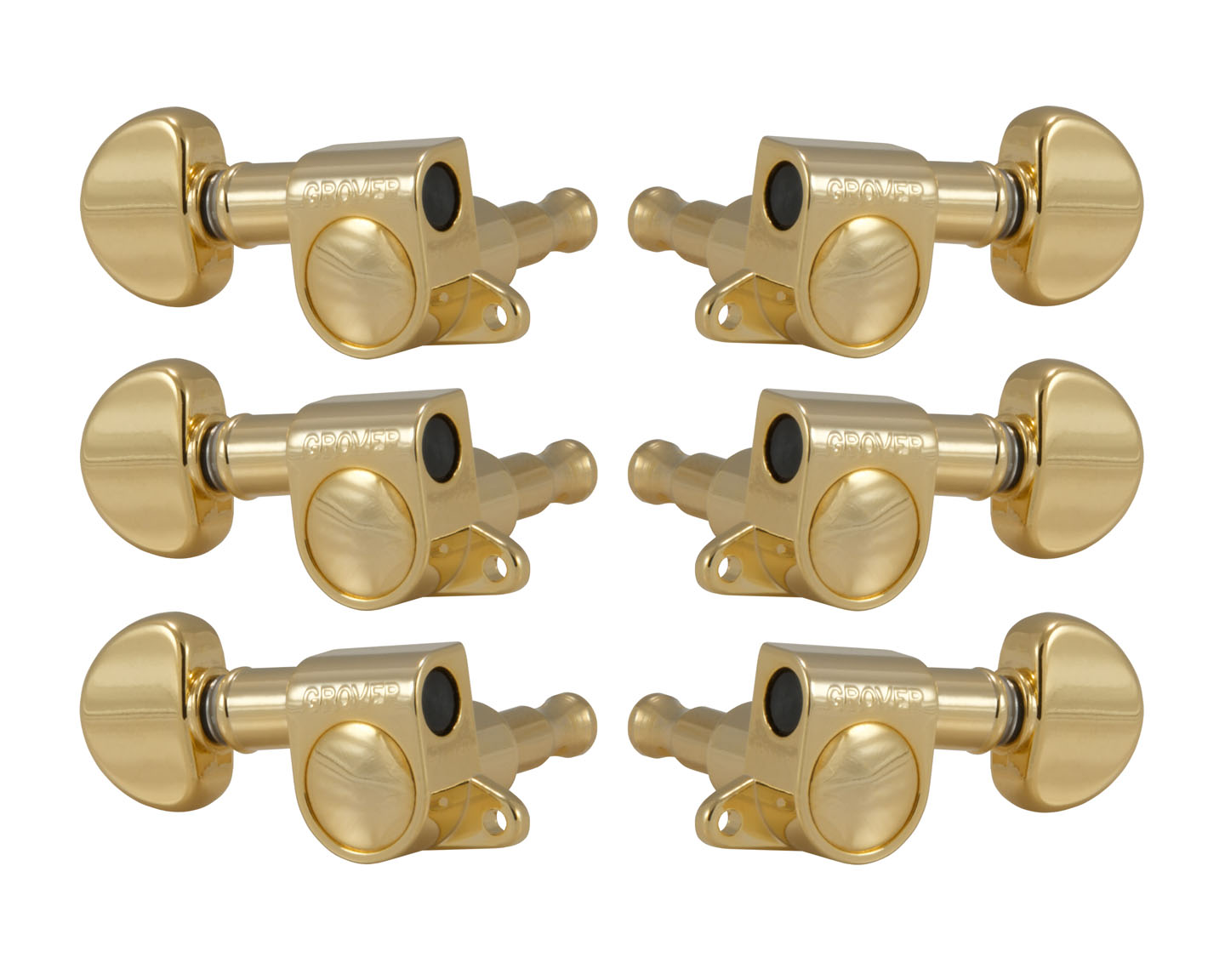

No. 205G Gold

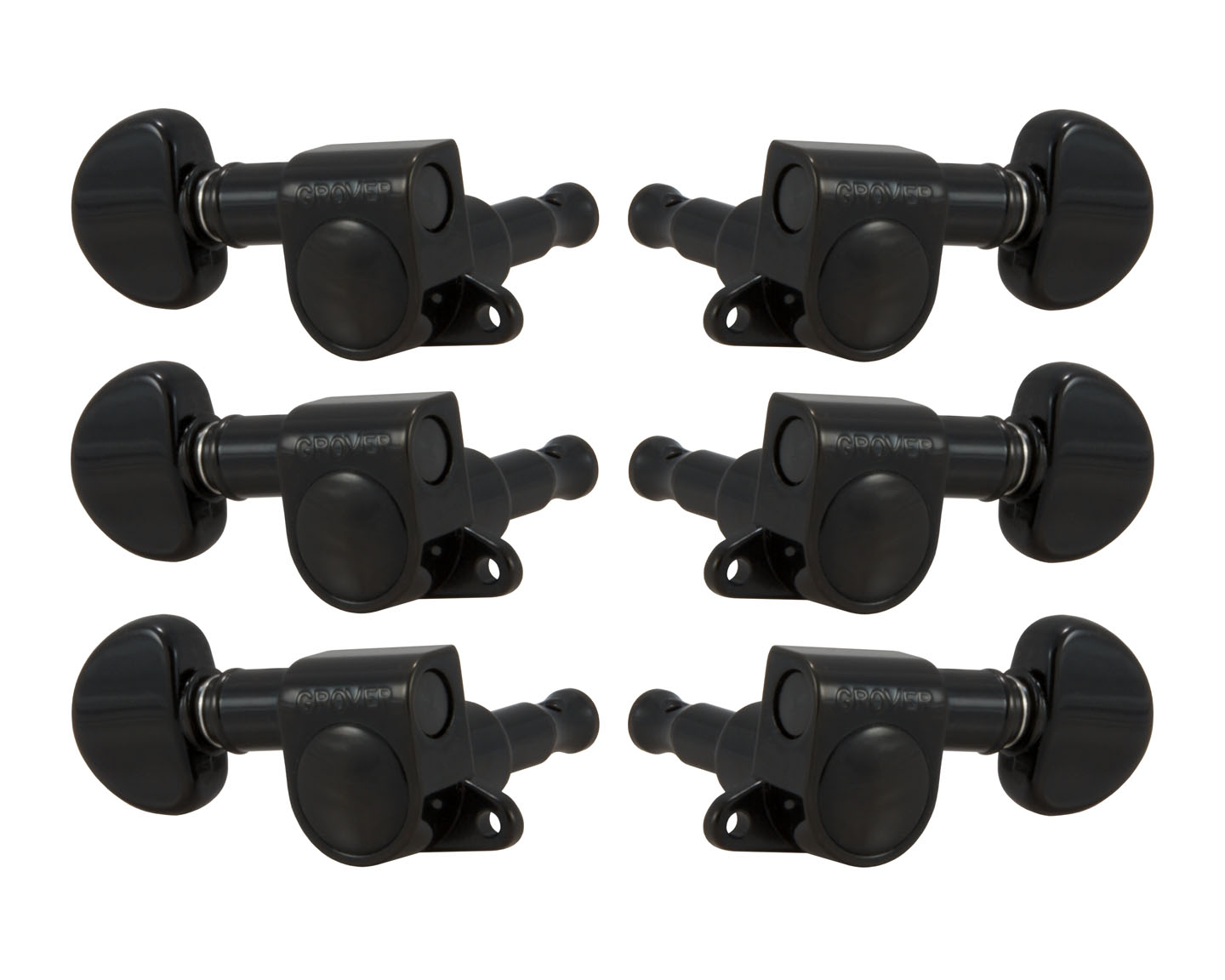

No. 205BC Black Chrome
For standard 6-in-line guitars, 6 Bass, Set of 6
No. 205N6 Nickel
No. 205C6 Chrome

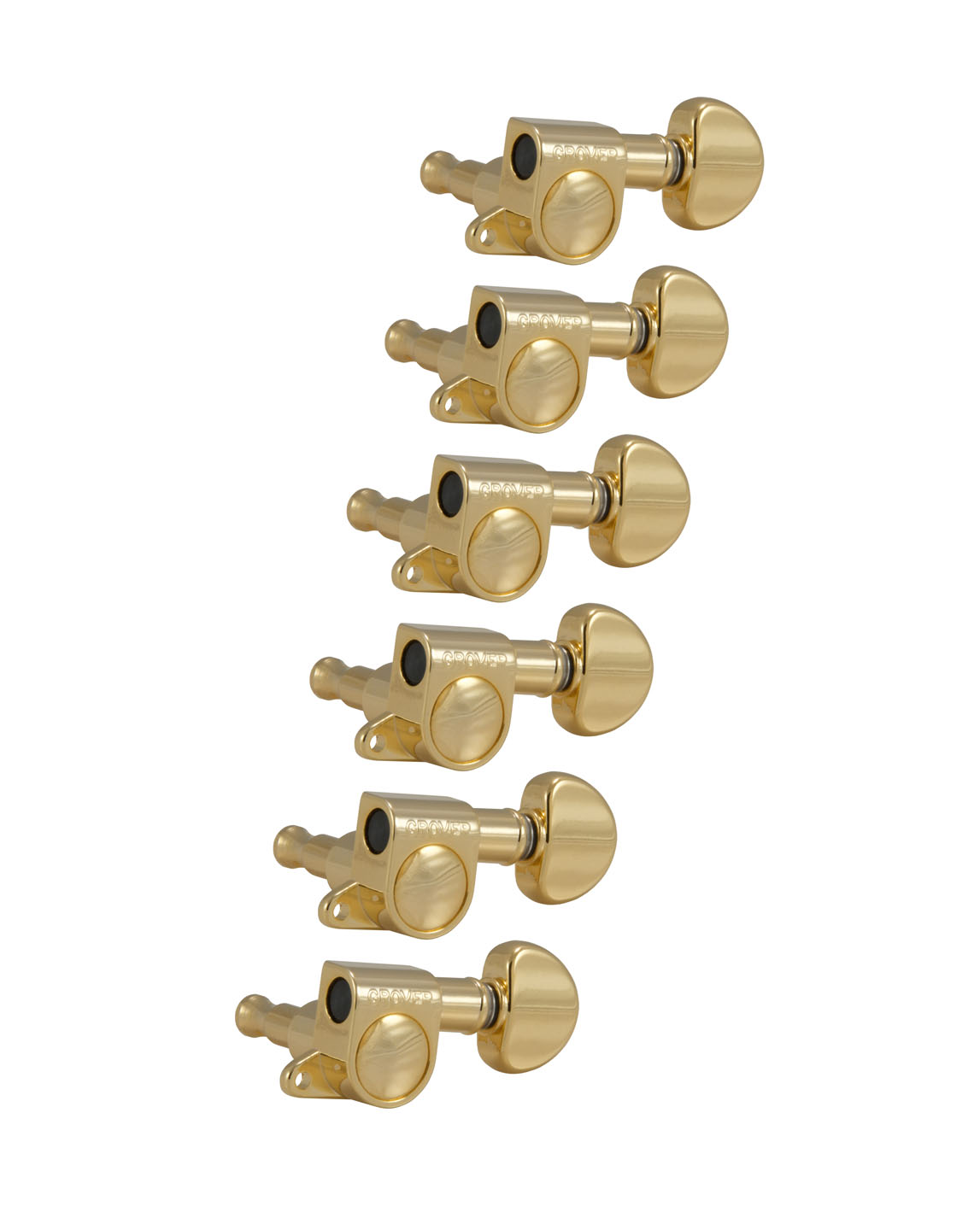

No. 205G6 Gold

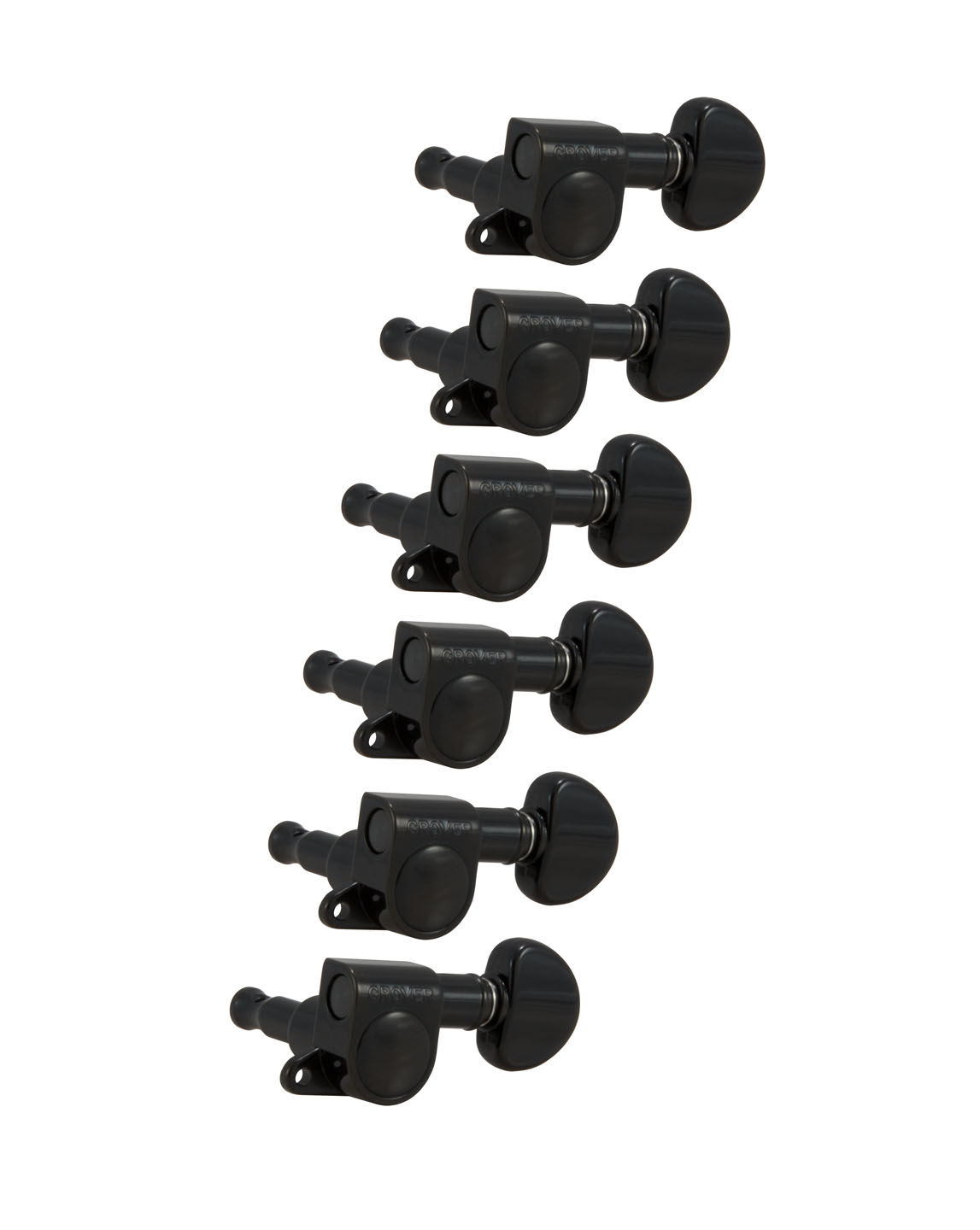

No. 205BC6 Black Chrome
For left-hand 6-in-line guitars (reverse headstock), 6 Treble, Set of 6
No. 205NL6 Nickel
No. 205CL6 Chrome

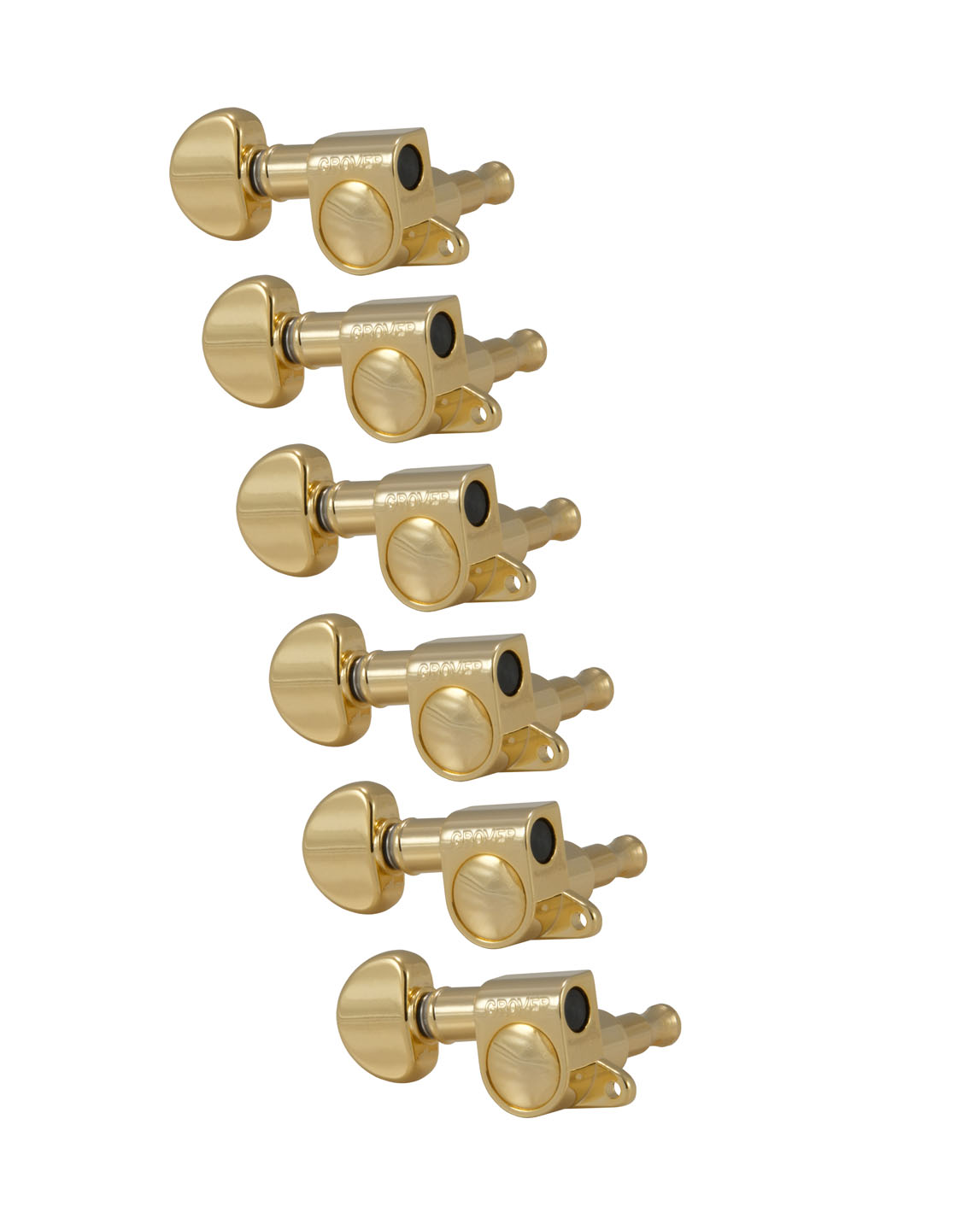

No. 205GL6 Gold
No. 205BCL6 Black Chrome
For 12-string guitars, 6 Treble and 6 Bass, Set of 12
No. 205N12 Nickel
No. 205C12 Chrome
No. 205G12 Gold
No. 205BC12 Black Chrome
