MID-SIZE ROTO-GRIP LOCKING ROTOMATICS® (505 SERIES)

The 505 Series has been redesigned to be a drop-in replacement for our 205 and 205-18 Series. Utilizing the famous Rotomatic® design with a “thumb screw” mechanism which locks the string into place, allowing for quick string changes.

“The 505 Series has been redesigned to be a drop-in replacement for our 205 and 205-18 Series. Utilizing the famous Rotomatic® design with a “thumb screw” mechanism which locks the string into place, allowing for quick string changes. To operate, insert the string through the post hole, wrap around once, then lock by tightening with the thumb screw.

  • Sealed-in, lubricated gears
  • 18:1 gear ratio
  • 25/64” post hole
  • Post length to hole: 20.54mm
  • Overall post length: 25.6mm
  • Weight per pc/per set: 1.4oz / 8.4oz
  • Max. string gauge: .054”
  • Hardware included (bushings, washers, screws)
  • Drop-in replacement for:
    • 205 Series
    • 205-18 Series

Available in:
For standard guitars, 3 Treble and 3 Bass, Set of 6

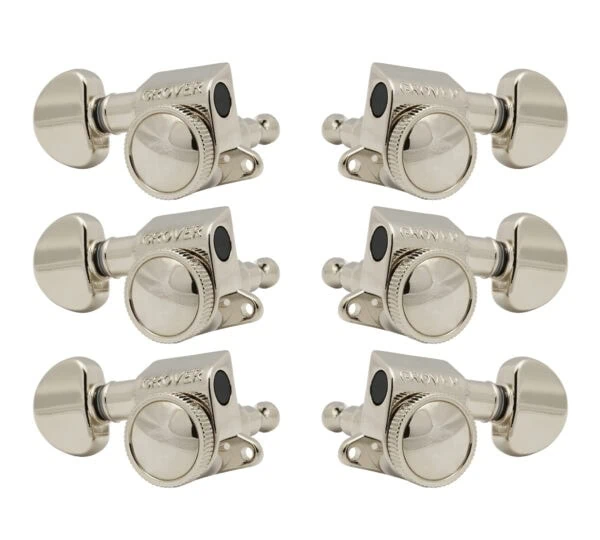

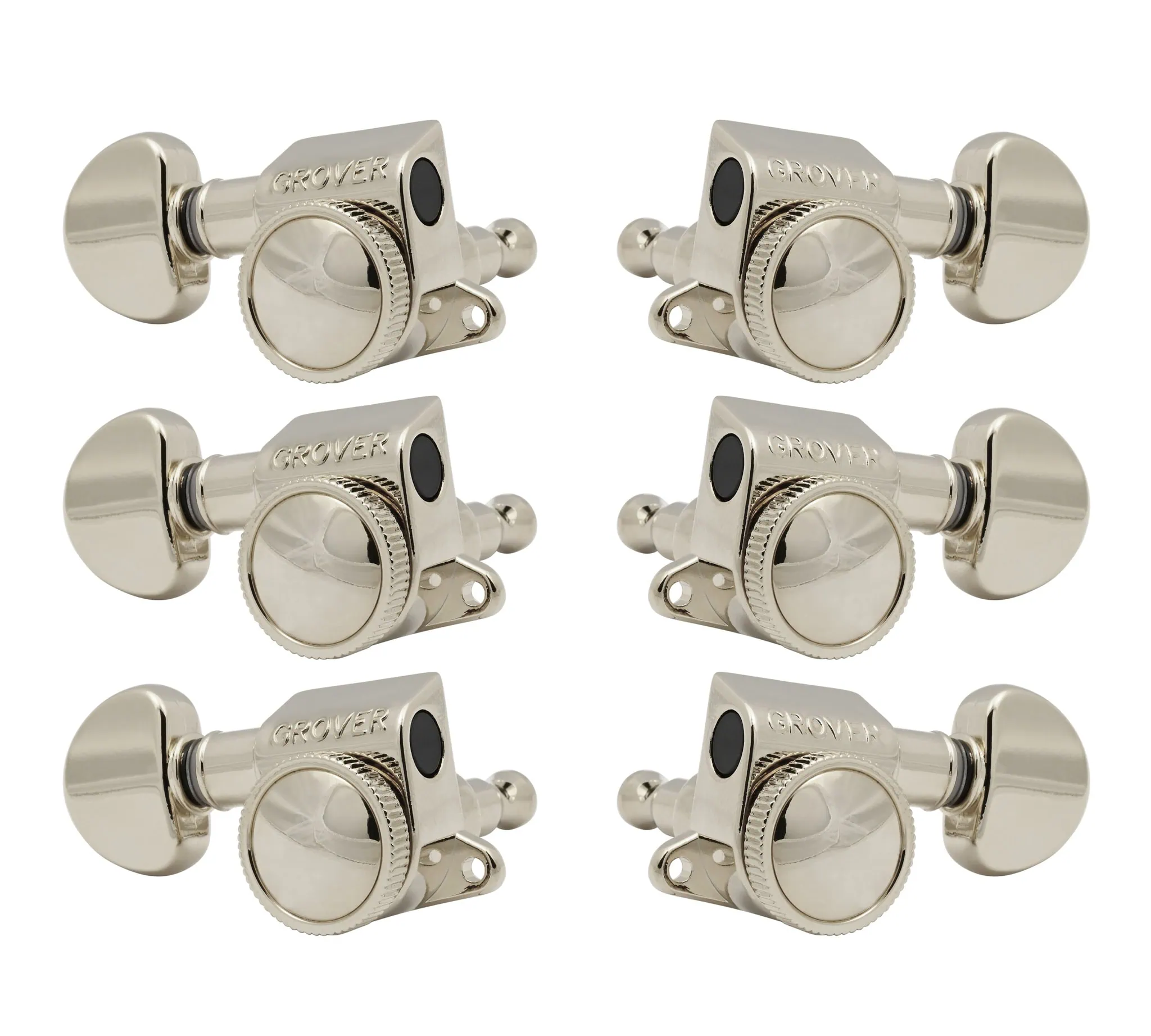

No. 505N Nickel
No. 505C Chrome
No. 505G Gold

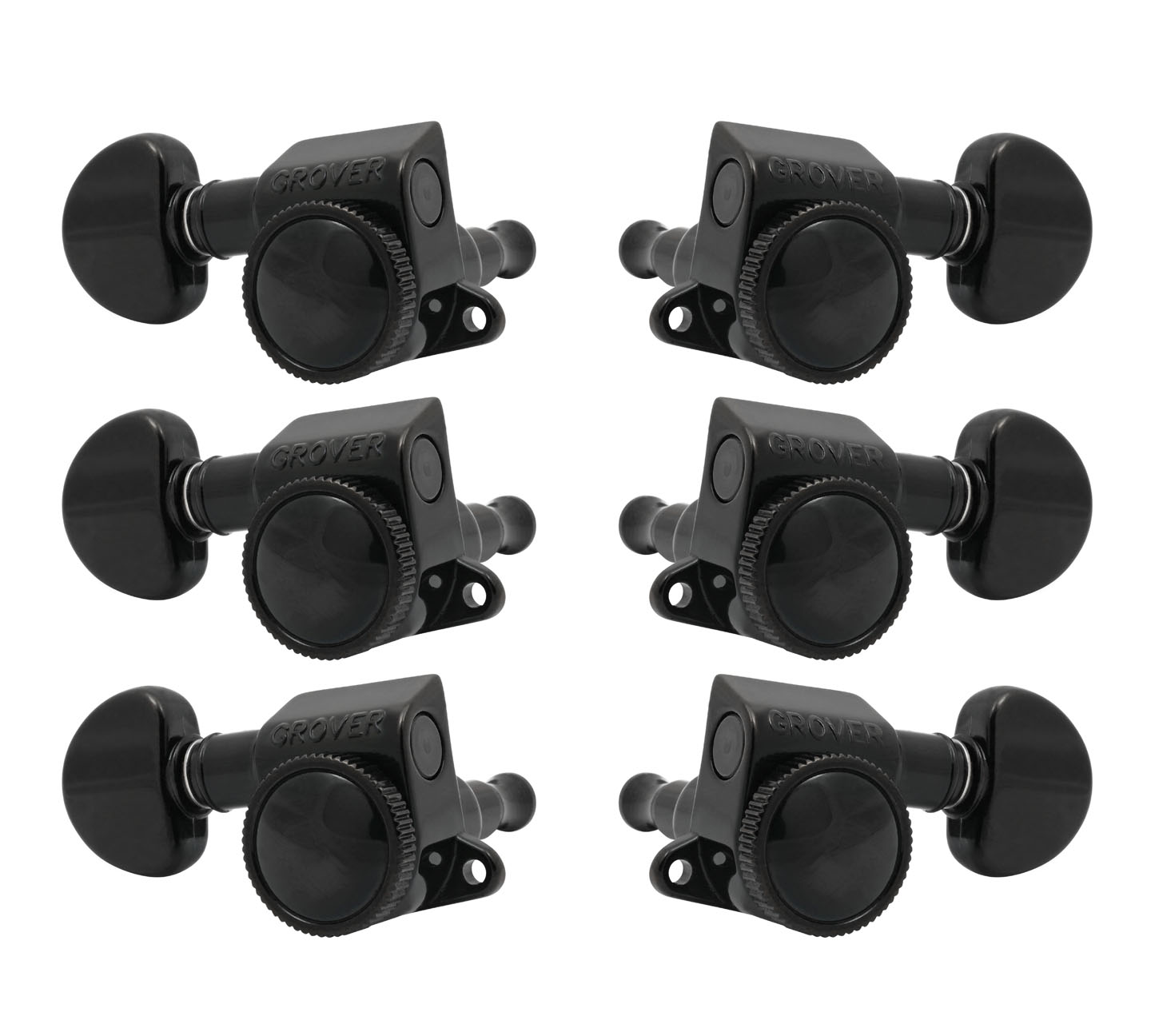

No. 505BC Black Chrome

For standard 6-in-line guitars, 6 Bass, Set of 6
No. 505N6 Nickel

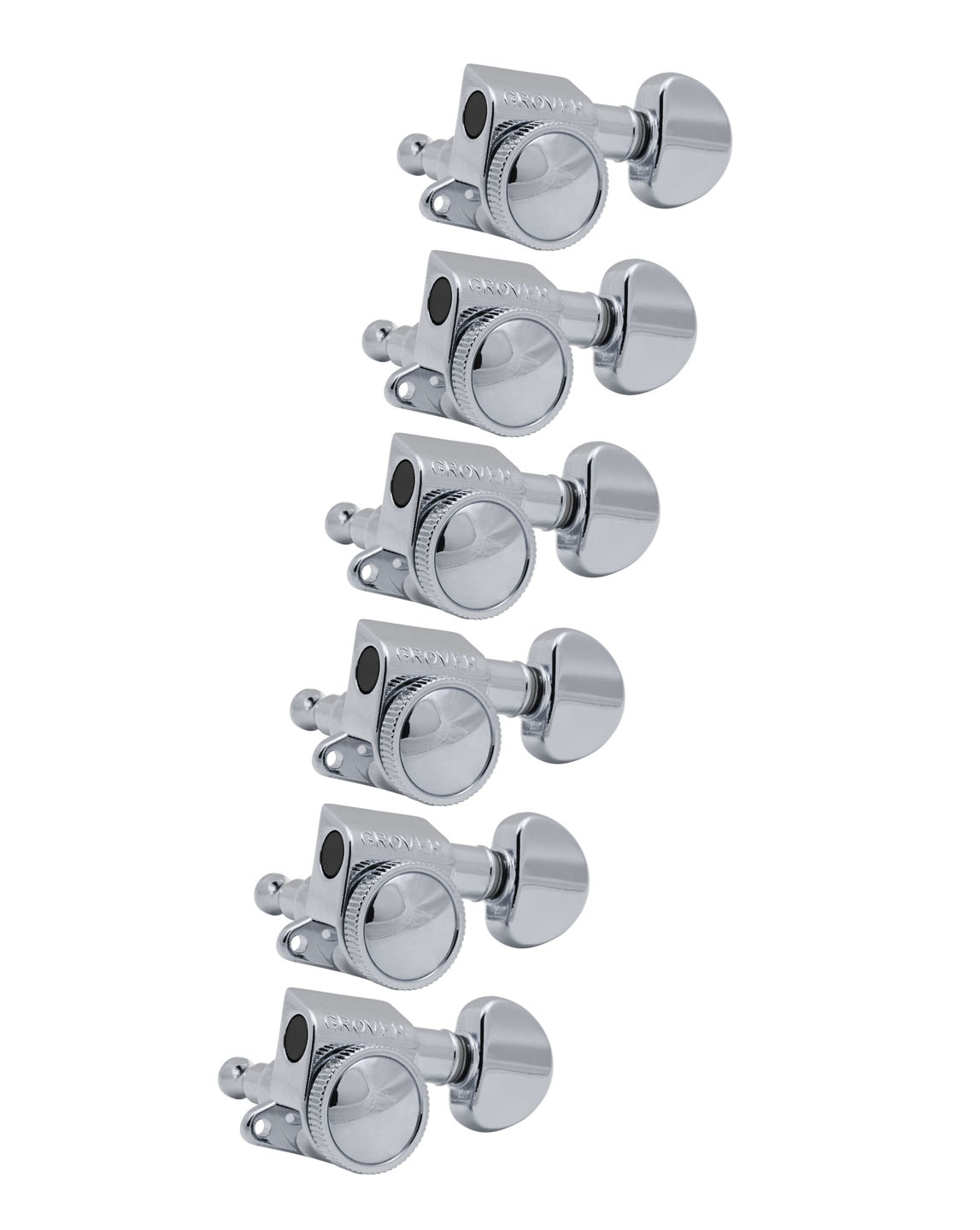

No. 505C6 Chrome
No. 505G6 Gold

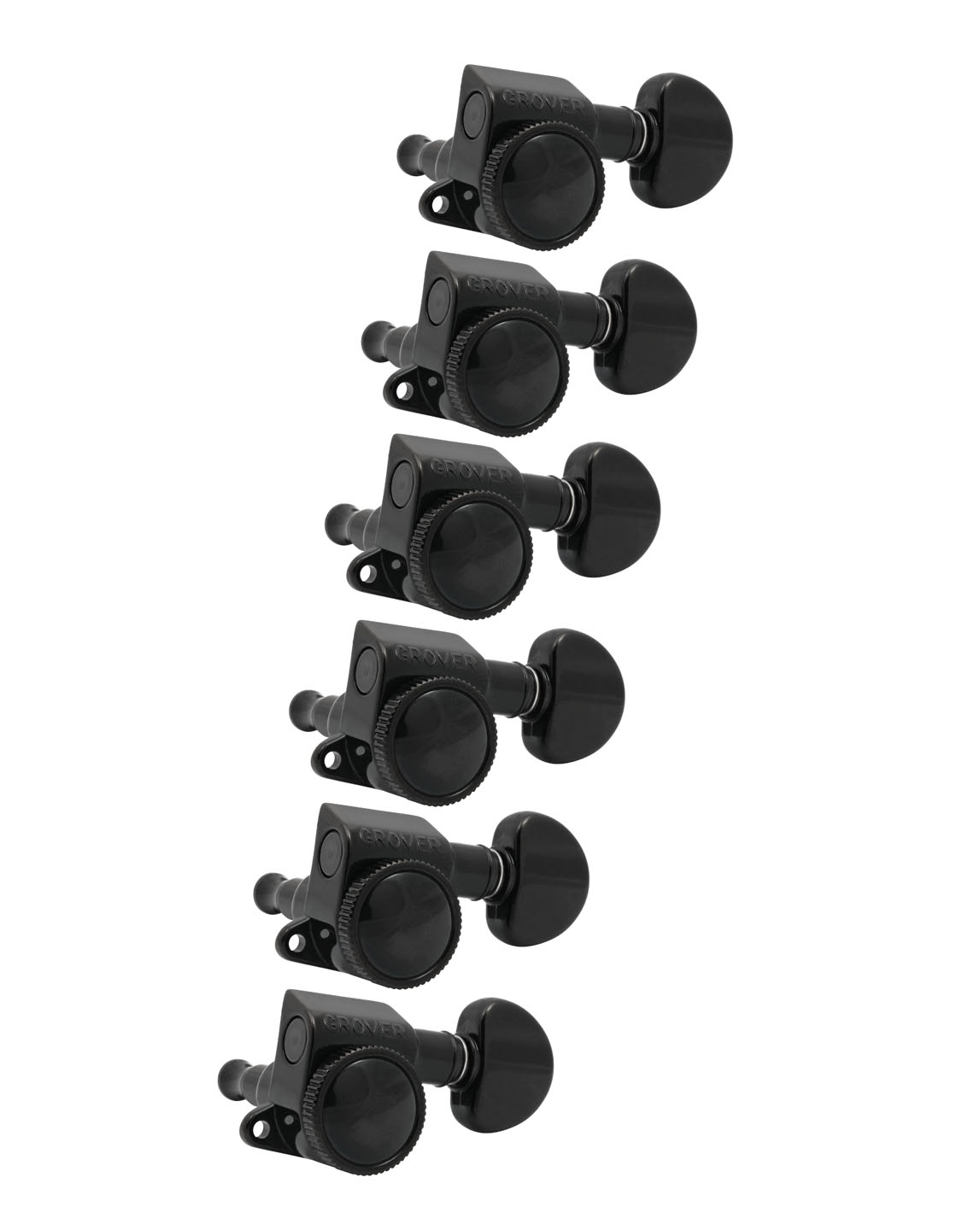

No. 505BC6 Black Chrome

For left-hand 6-in-line guitars (reverse headstock), 6 Treble, Set of 6
No. 505NL6 Nickel
No. 505CL6 Chrome

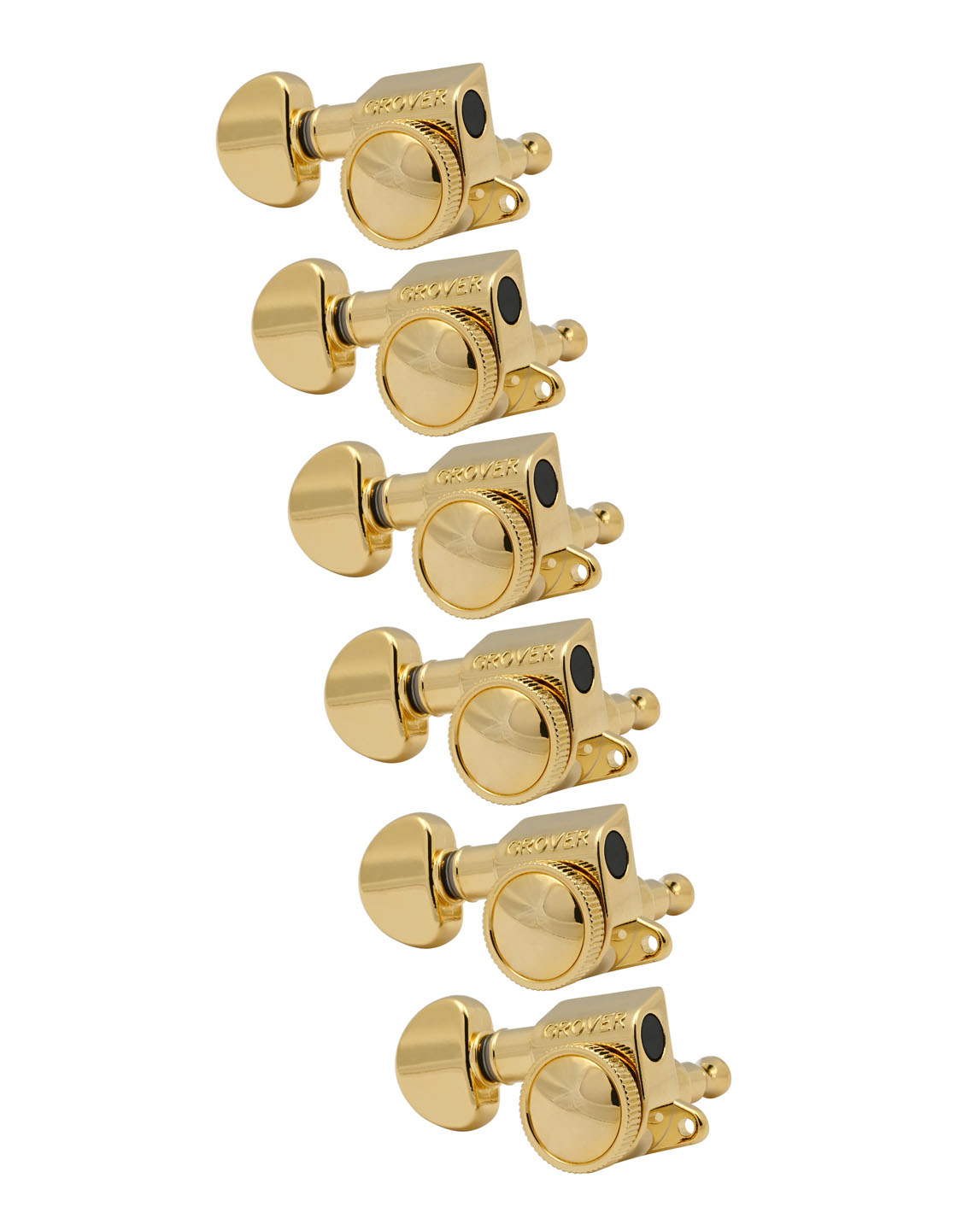

No. 505GL6 Gold

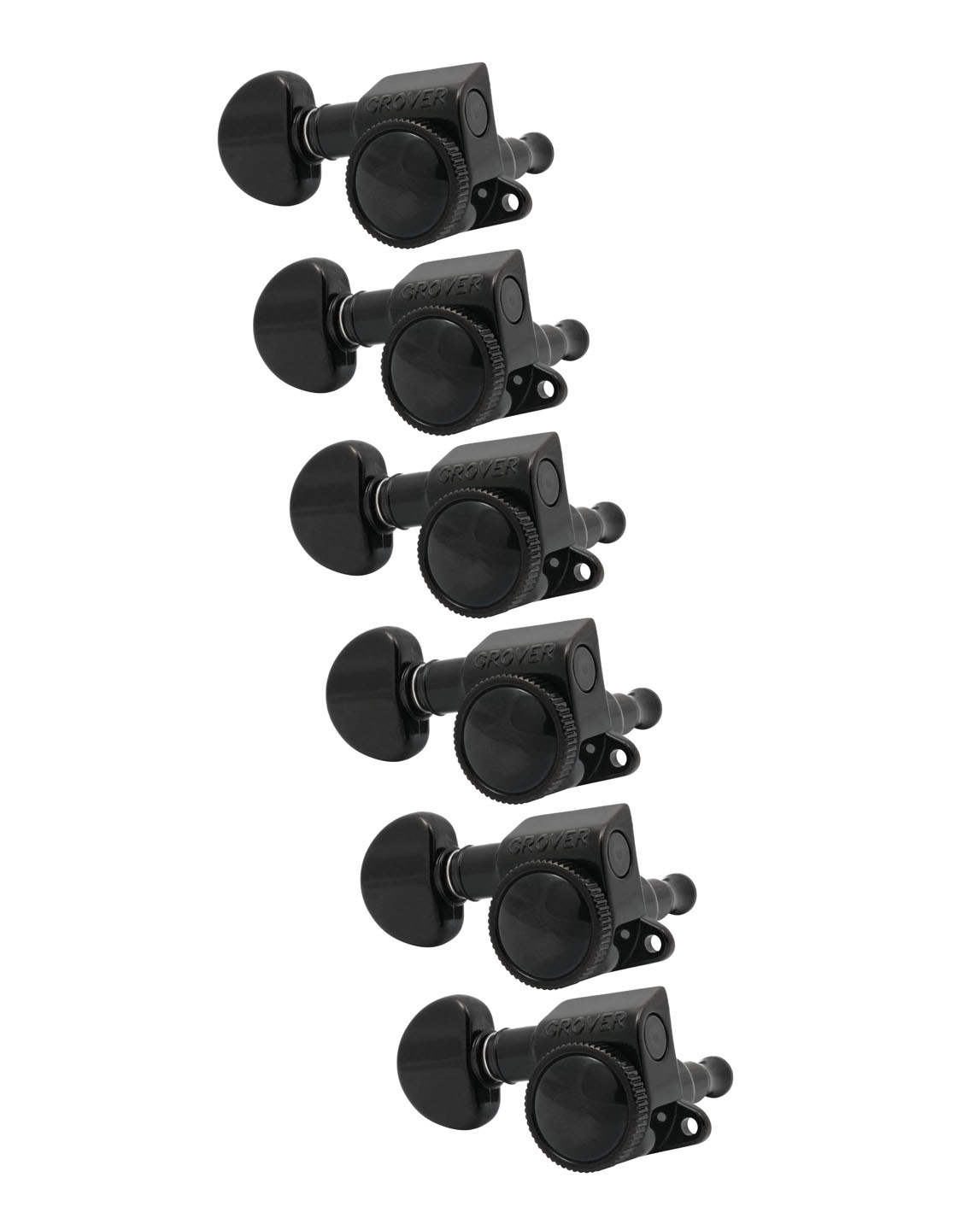

No. 505BCL6 Black Chrome

For 12-string guitars, 6 Treble and 6 Bass, Set of 12

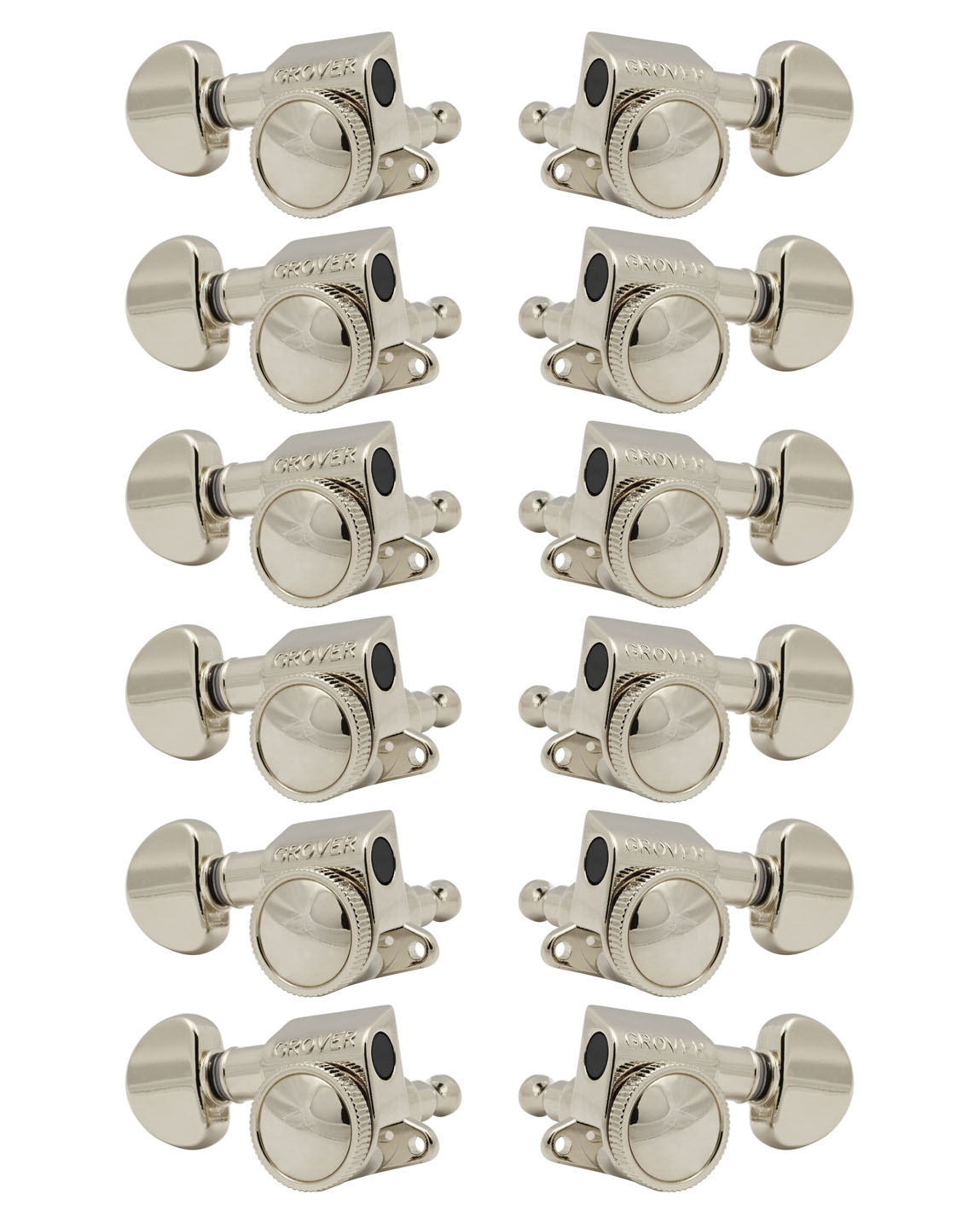

No. 505N12 Nickel
No. 505C12 Chrome

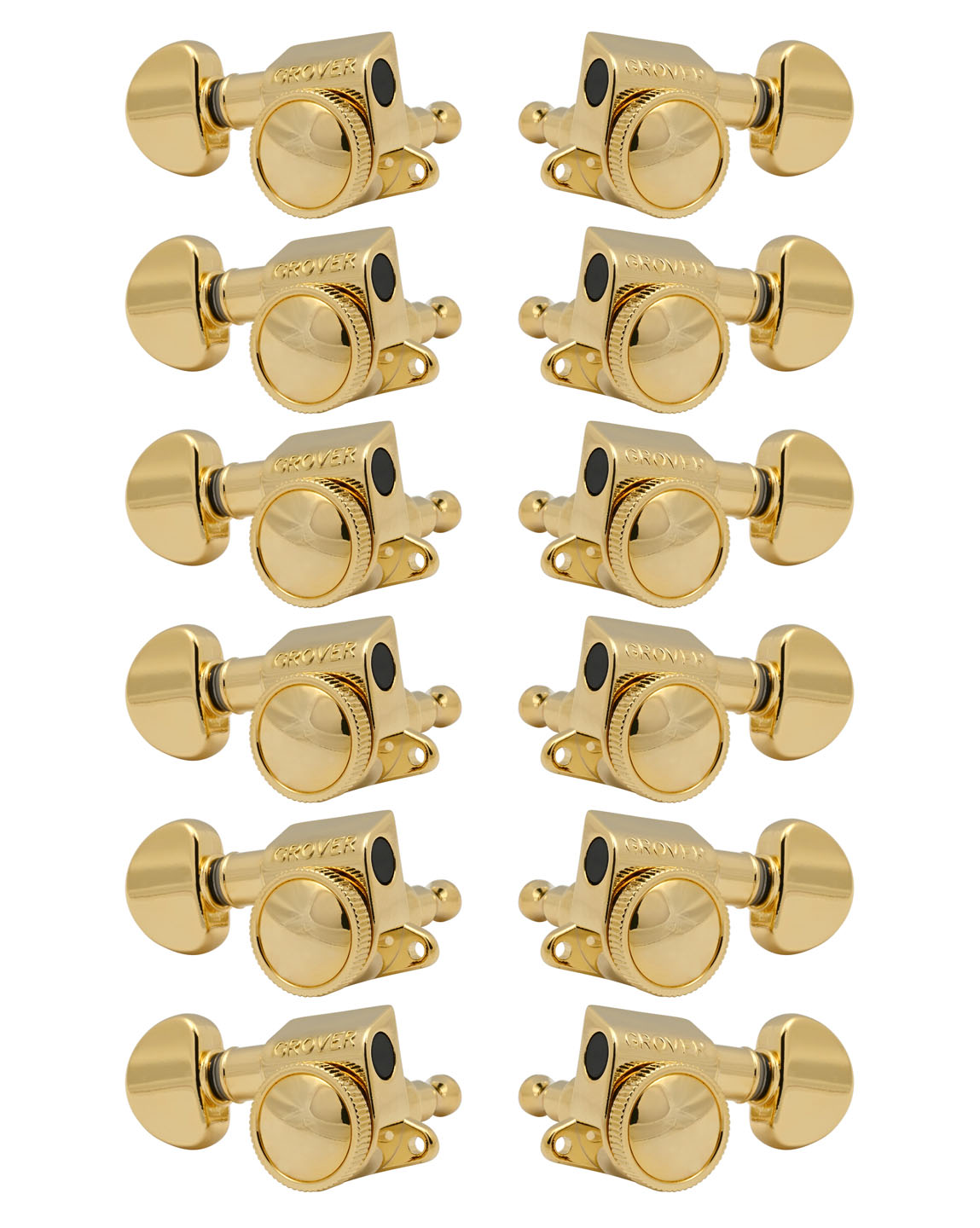

No. 505G12 Gold

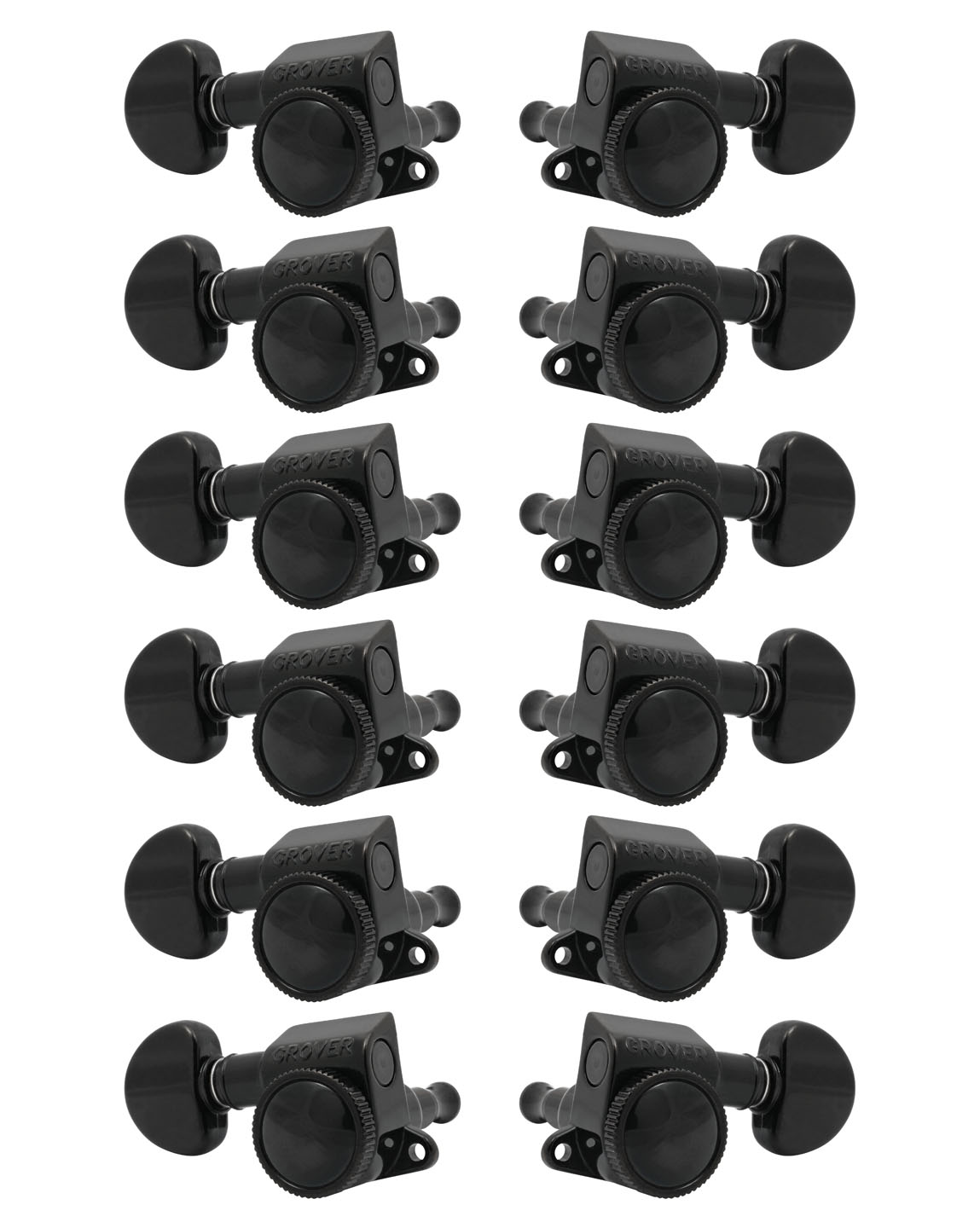

No. 505BC12 Black Chrome”

Schematic Drawing

505 Series
