The 136 Series features a die-cast, two-piece housing for additional strength and precision. The unique bearing surface in the housing ensures string post stability, enhancing the alignment of the gear and worm. Designed with a classic rounded button made popular in the 1950’s.
• Sealed-in, lubricated gears
• Die-cast housing
• 14:1 gear ratio
• 25/64” post hole
• Post length to hole: 23.6mm
• Overall post length: 28.9mm
• Weight per pc/per set: 1.1oz/6.6oz
• Max. string gauge: .074”
• Hardware included (bushings, screws)
• Drop-in replacement for:
*Note: New top mounting hole will need to be drilled
102-18 Series
102V Series
103 Series
106 Series
109 Series
109-18 Series
502 Series
509 Series
Available in:
For standard guitars, 3 Treble and 3 Bass, Set of 6
No. 136N Nickle

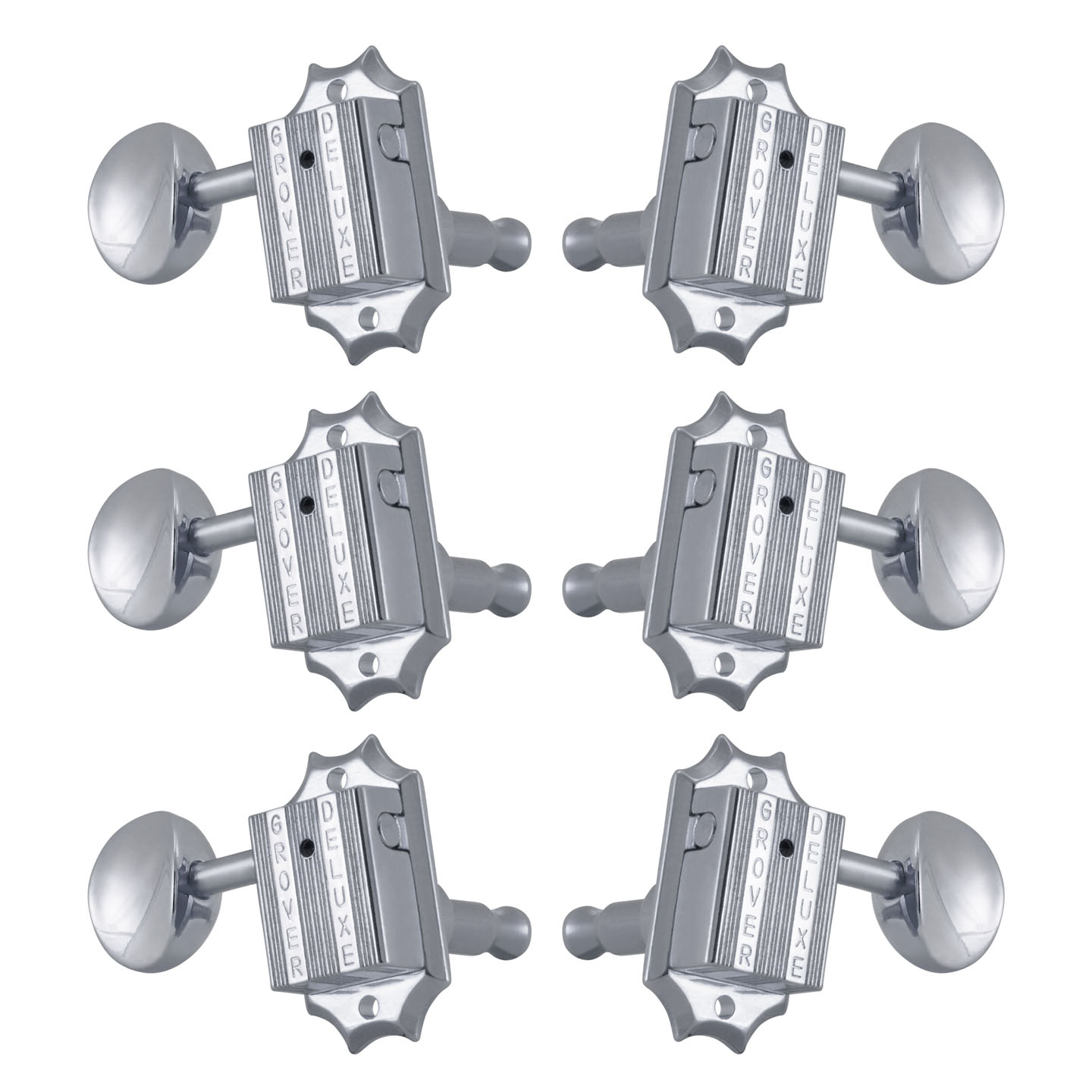

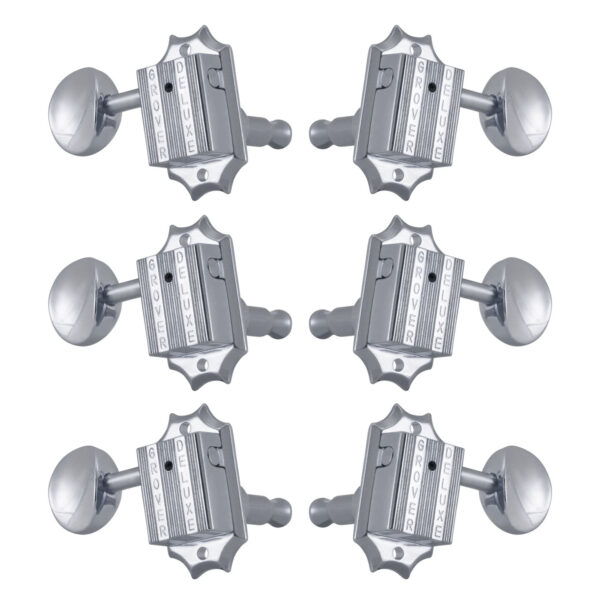

No. 136C Chrome

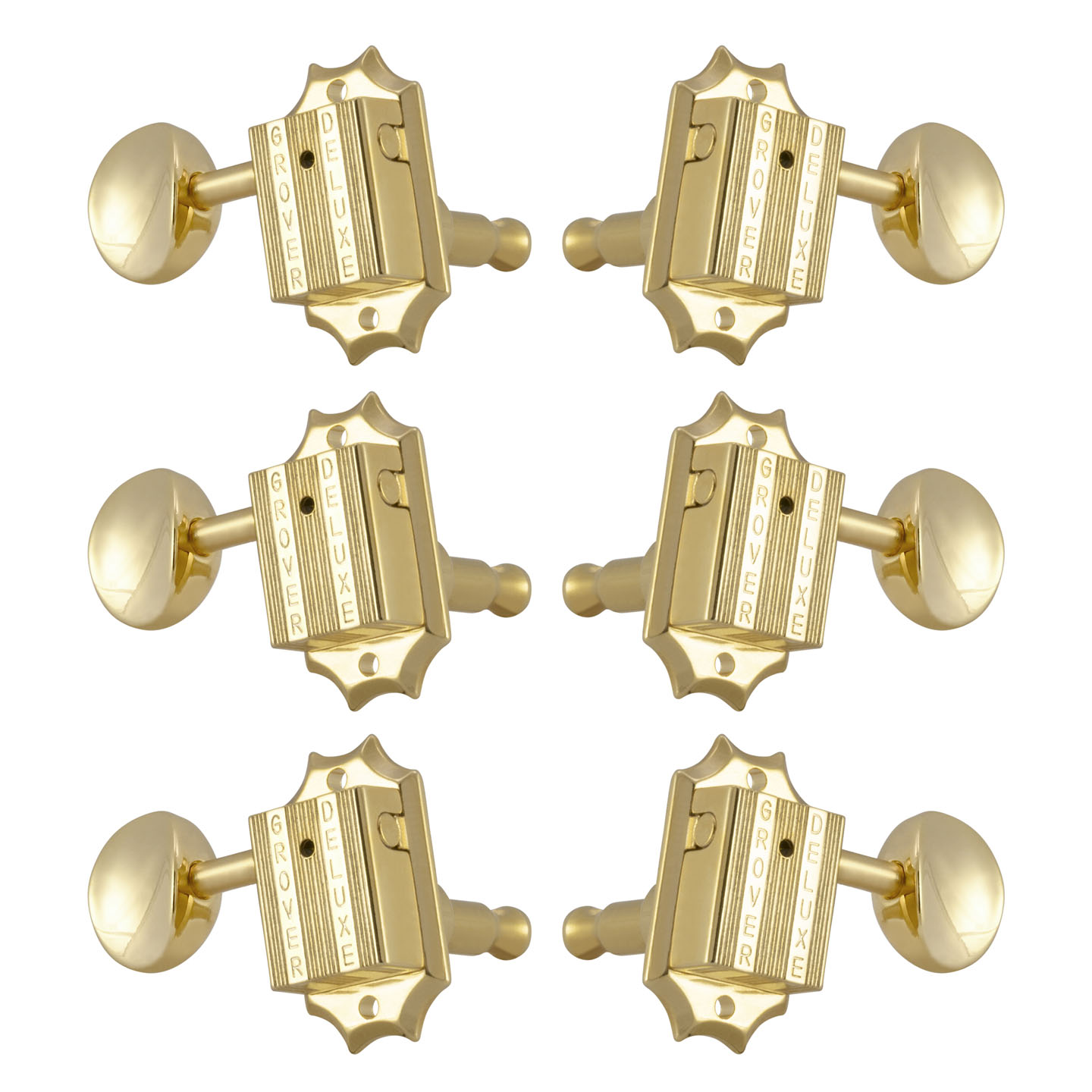

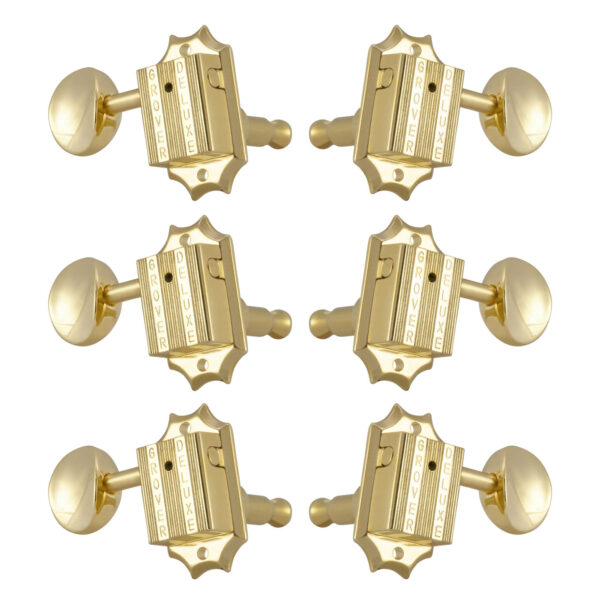

No. 136G Gold
For standard 6-in-line guitars, 6 Bass, Set of 6

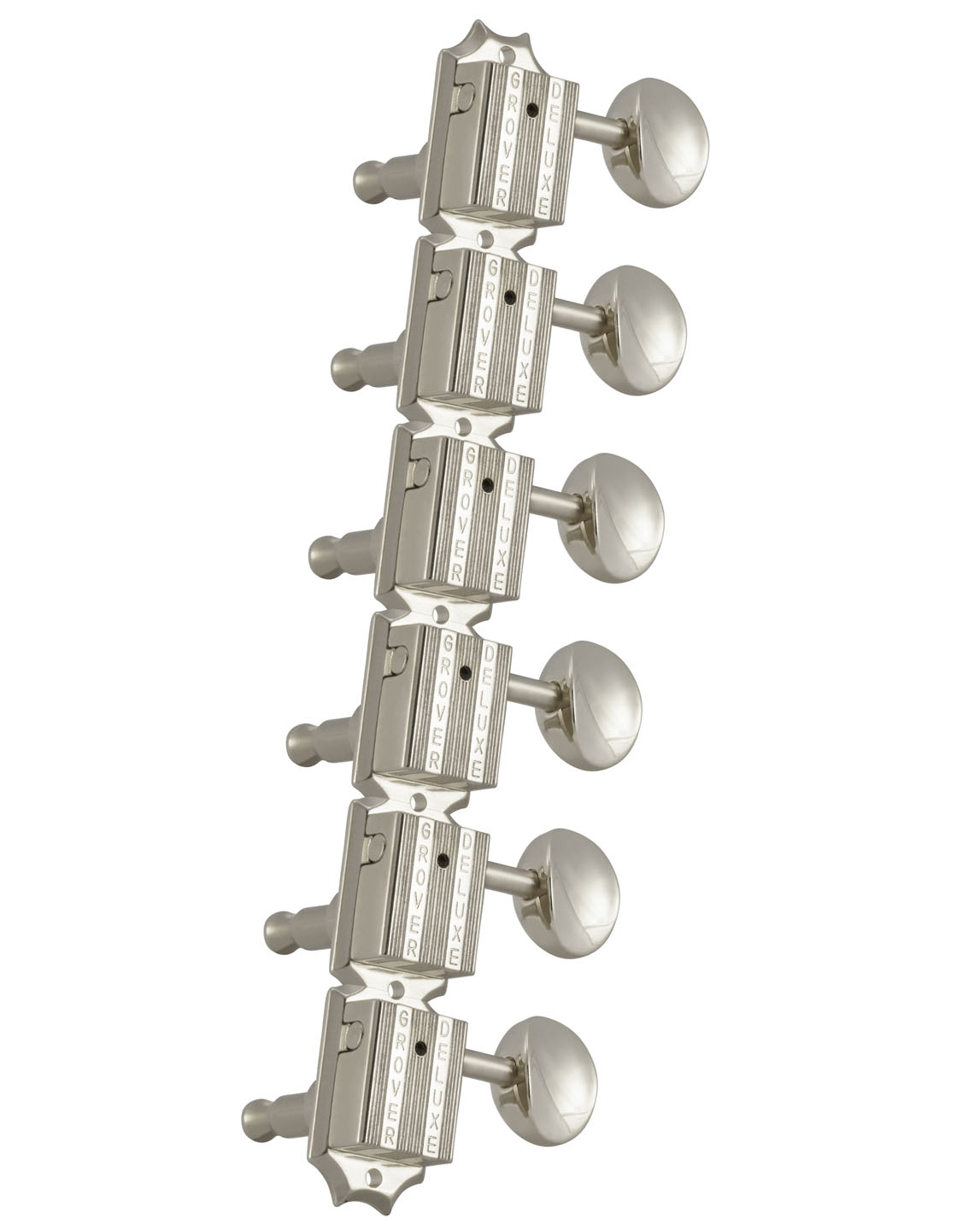

No. 136N6 Nickel
No. 136C6 Chrome

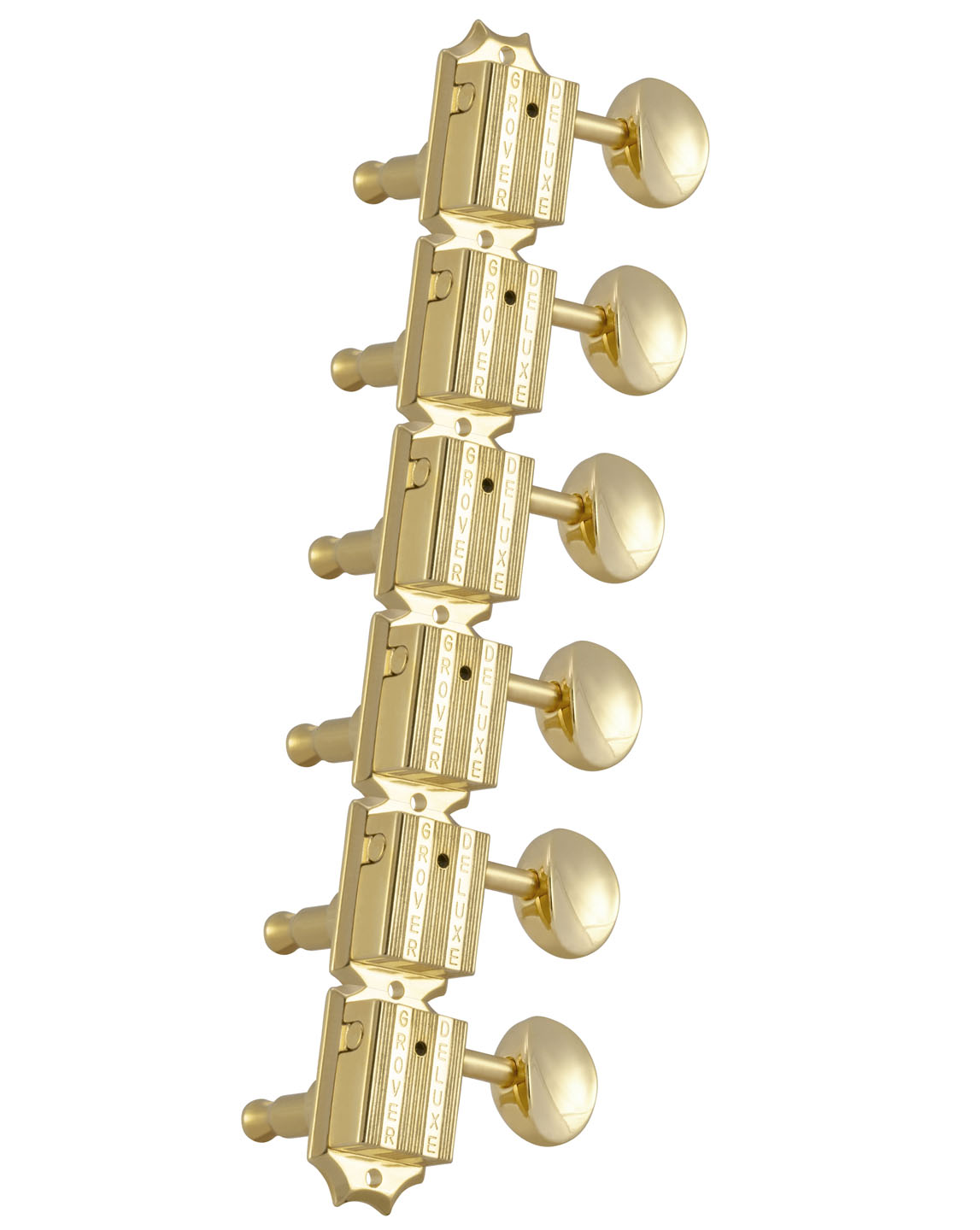

No. 136G6 Gold
