The 97-18 Series is classic in design and feature a stylish die-cast plate with multiple interchangeable button options. These high-end open gear machine heads offer smooth and precise tuning.
ā¢ Open gears
ā¢ 18:1 gear ratio
Vertical (for solid headstock)
ā¢ 22/64ā post hole
ā¢ Post length to hole: 22.53mm
ā¢ Overall post length: 28.77mm
ā¢ Weight per pc/per set: 1.0oz/6.0oz
ā¢ Max. string gauge: .074ā
ā¢ Hardware included (bushings, screws)
ā¢ Drop-in replacement for: None at this time
Horizontal (for slotted headstock)
ā¢ 16/64ā post hole
ā¢ Post length to hole: 13.37mm
ā¢ Overall post length: 28.56mm
ā¢ Weight per pc/per set: 1.0oz / 6.0oz
ā¢ Max. string gauge: .074ā
ā¢ Hardware included (screws)
ā¢ Drop-in replacement for: None at this time
Available in:
For Solid Guitar Headstocks (Vertical), 3 Treble and 3 Bass, Set of 6

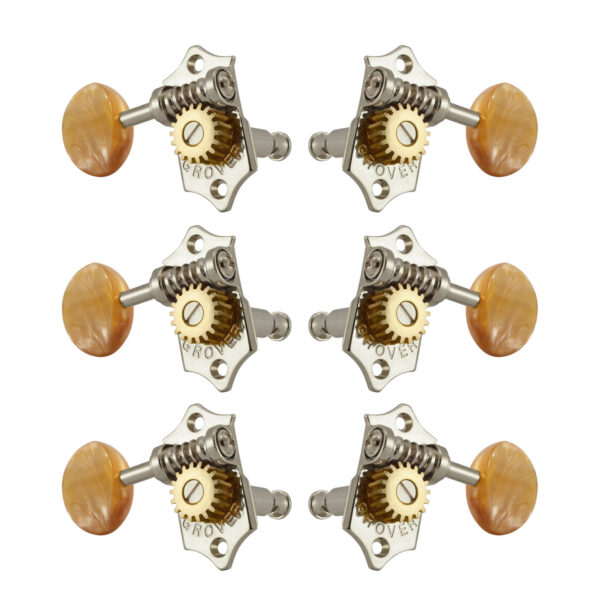

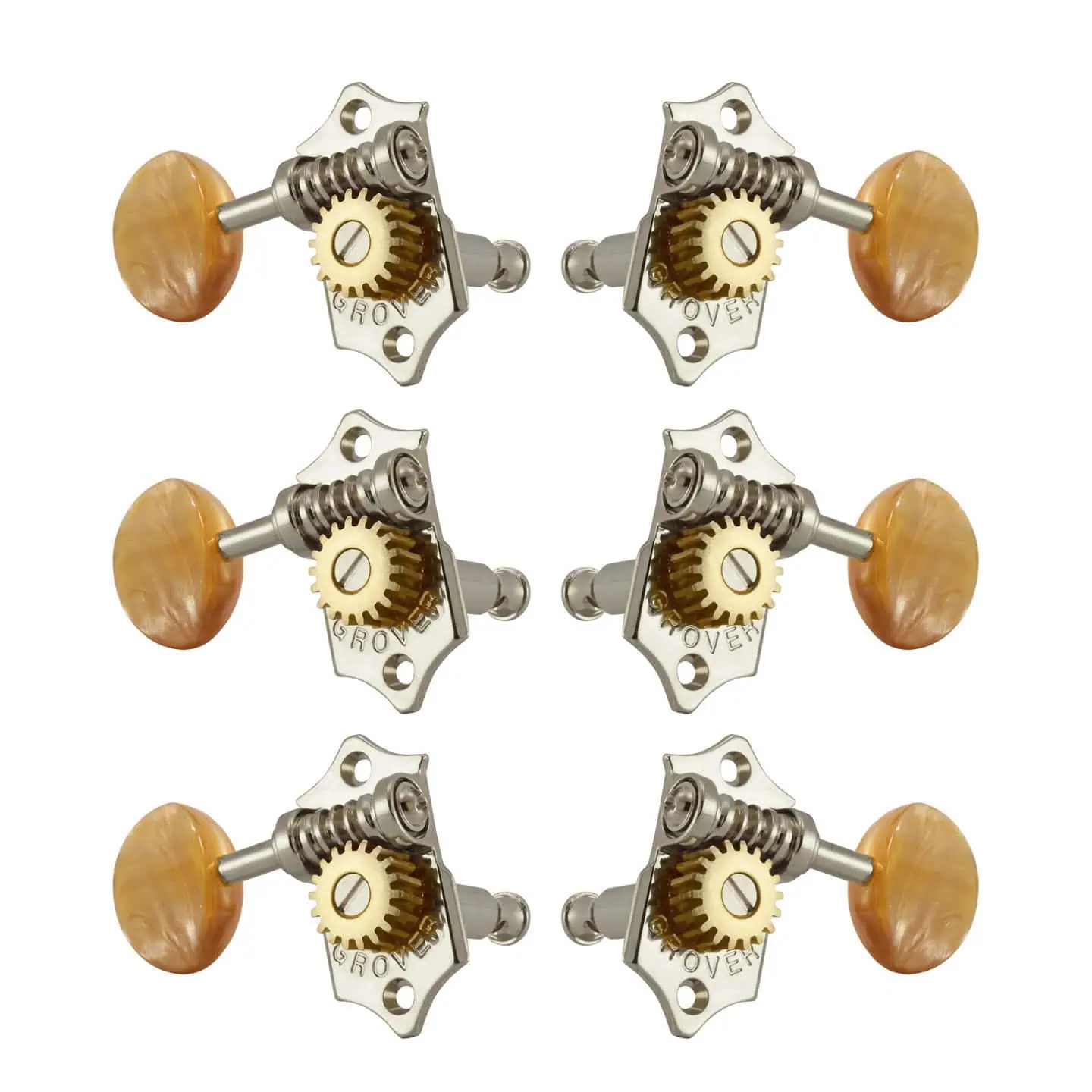

No. V97-18NAA Nickel w/ acrylic Amber buttons
No. V97-18CAA Chrome w/ acrylic Amber buttons
No. V97-18GAA Gold w/ acrylic Amber buttons

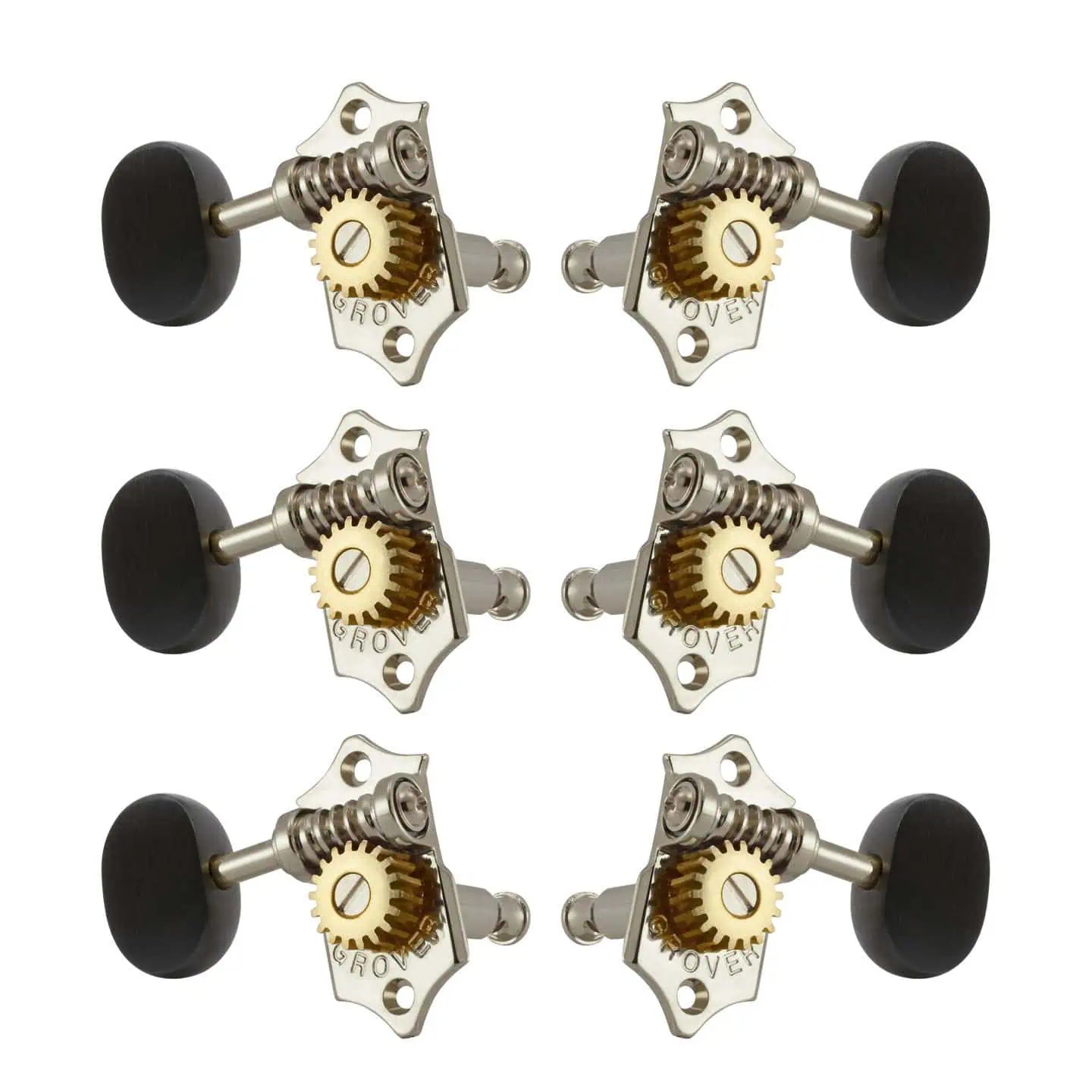

No. V97-18NAE Nickel w/ Ebony buttons
No. V97-18CAE Chrome w/ Ebony buttons
No. V97-18GAE Gold w/ Ebony buttons

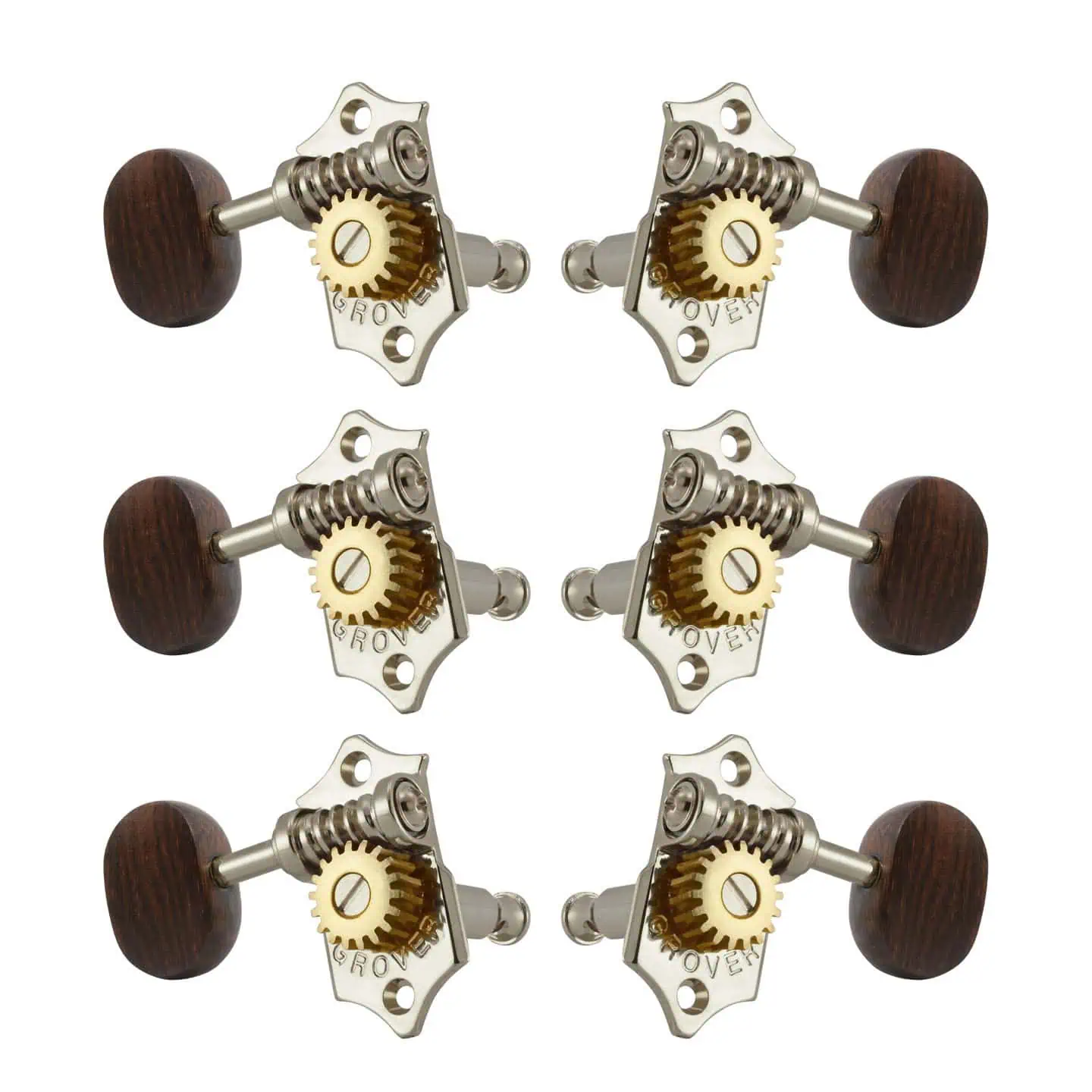

No. V97-18NAR Nickel w/ Rosewood buttons
No. V97-18CAR Chrome w/ Rosewood buttons
No. V97-18GAR Gold w/ Rosewood buttons
For Slotted Guitar Headstocks (Horizontal), 3 Treble and 3 Bass, Set of 6
No. H97-18NAA Nickel w/ acrylic Amber buttons
No. H97-18CAA Chrome w/ acrylic Amber buttons
No. H97-18GAA Gold w/ acrylic Amber buttons
No. H97-18NAE Nickel w/ Ebony buttons
No. H97-18CAE Chrome w/ Ebony buttons
No. H97-18GAE Gold w/ Ebony buttons
No. H97-18NAR Nickel w/ Rosewood buttons
No. H97-18CAR Chrome w/ Rosewood buttons
No. H97-18GAR Gold w/ Rosewood buttons
