The 145 Series is innovative in design and styling. Durable die-cast housing and butterfly button with self-aligning thrust bearings to allow the worm and gear to mesh perfectly. Safety-type string posts with cutaway shoulders to provide slip-over. May be used with ALL modern bass guitar headstocks.
• Sealed-in, lubricated gears
• Self aligning thrust bearings
• 23:1 gear ratio
• 21/32” post hole
• Post length to hole: 20.9mm
• Overall post length: 34.3mm
• Weight per pc/per set: 3.8oz/15.2oz
• Max. string gauge: .145”
• Hardware included (bushings, washers, screws)
• Drop-in replacement for: None at this time
Available in:

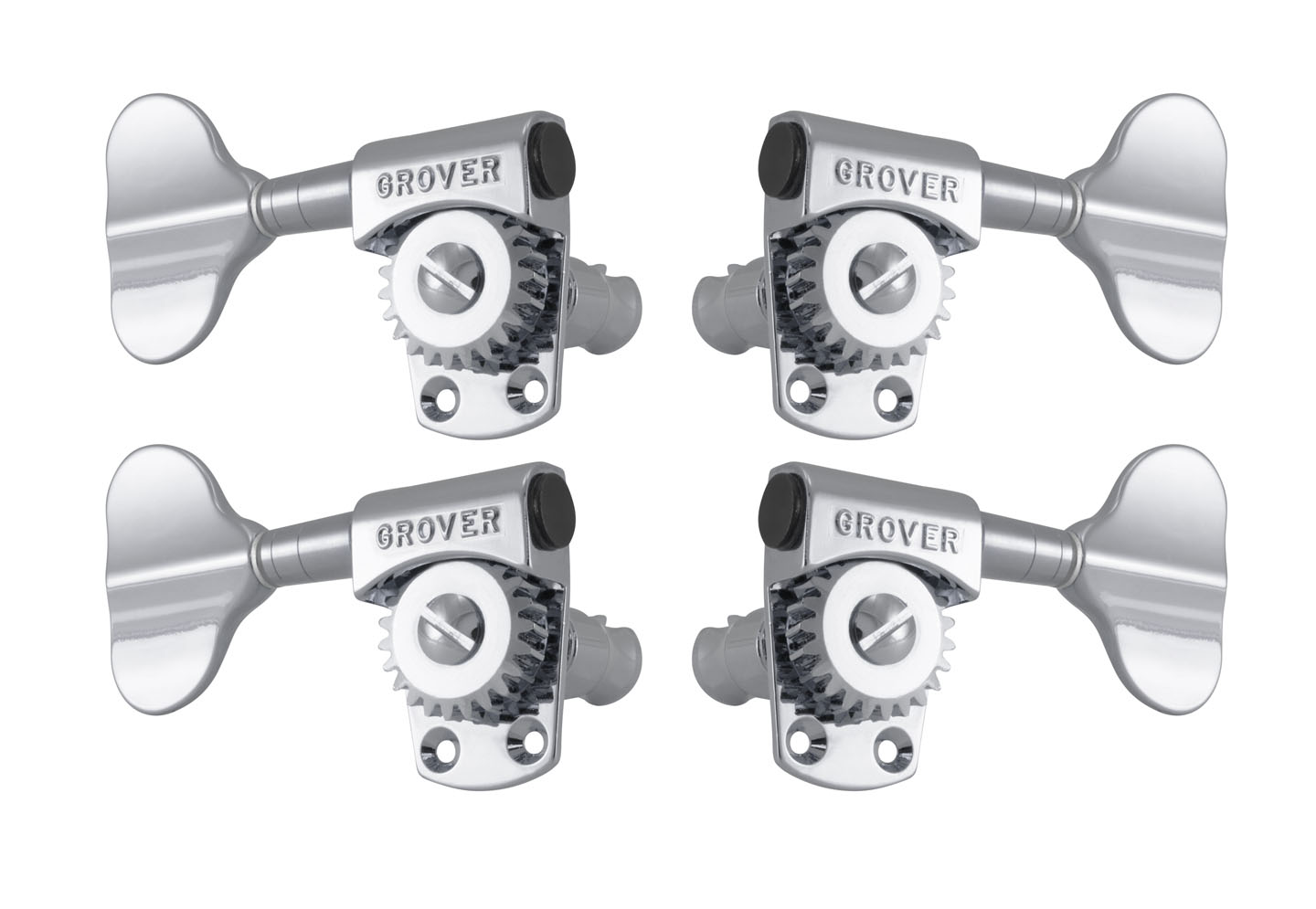

For standard bass guitars, 2 Treble, 2 Bass, Set of 4

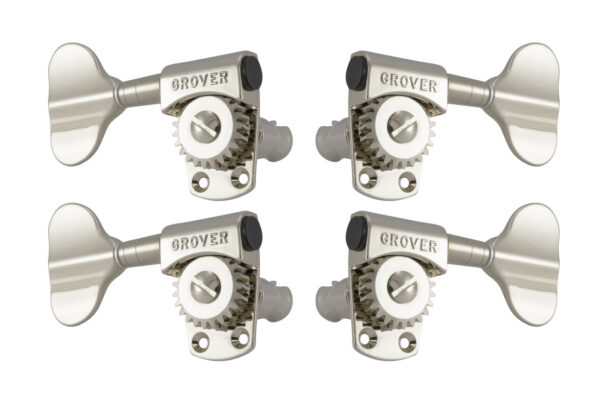

No. 145N Nickel
No. 145C Chrome

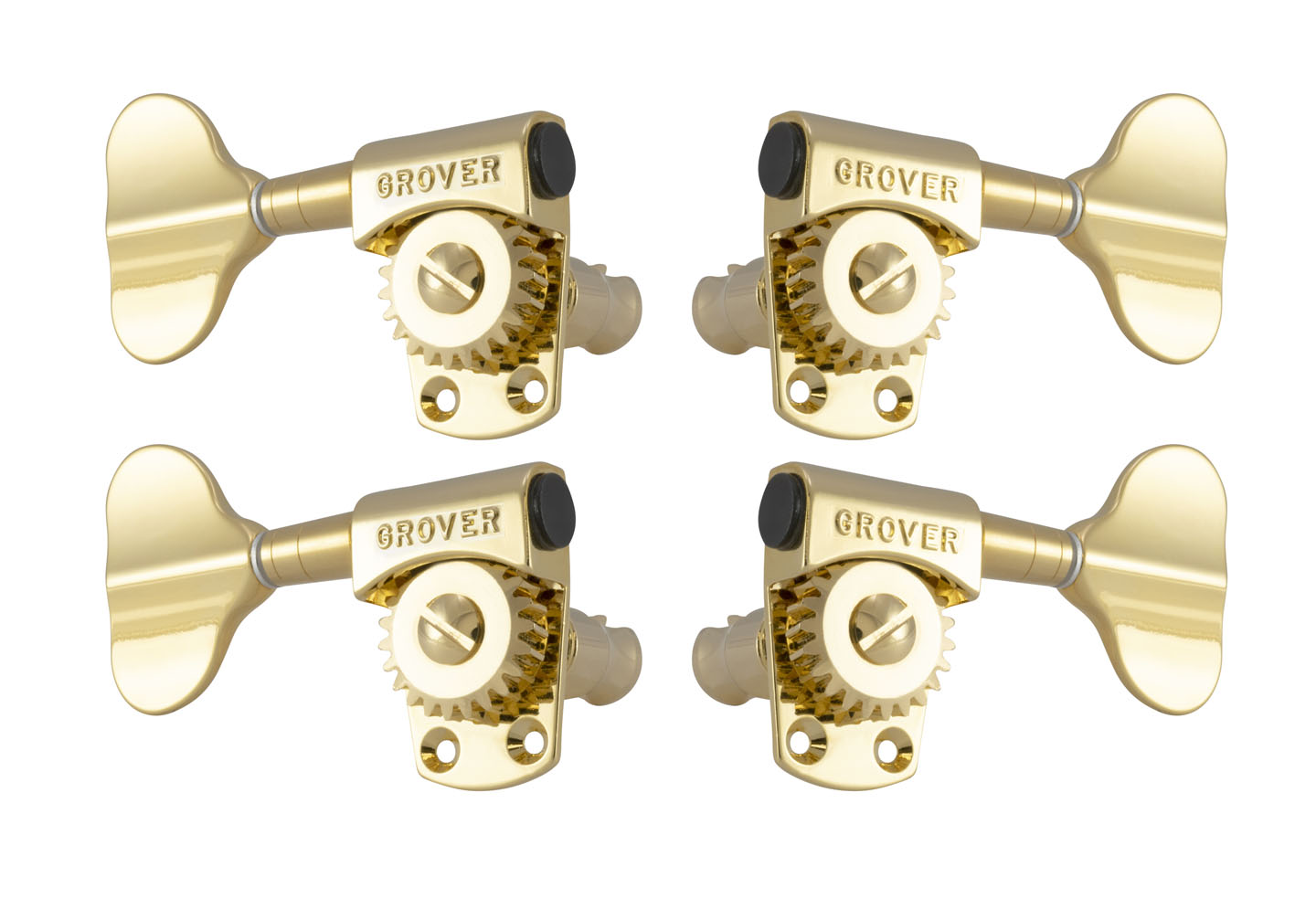

No. 145G Gold

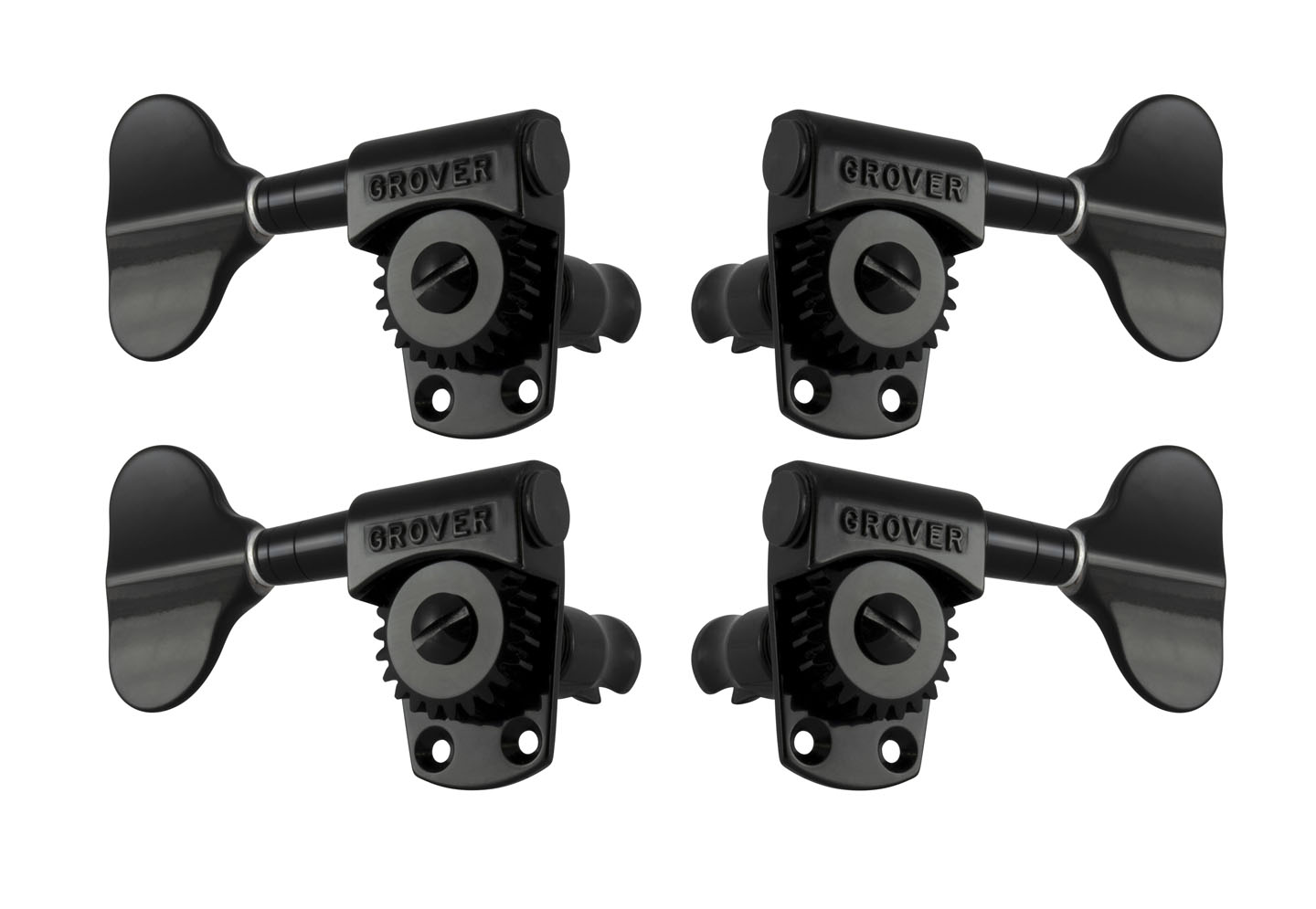

No. 145BC Black Chrome

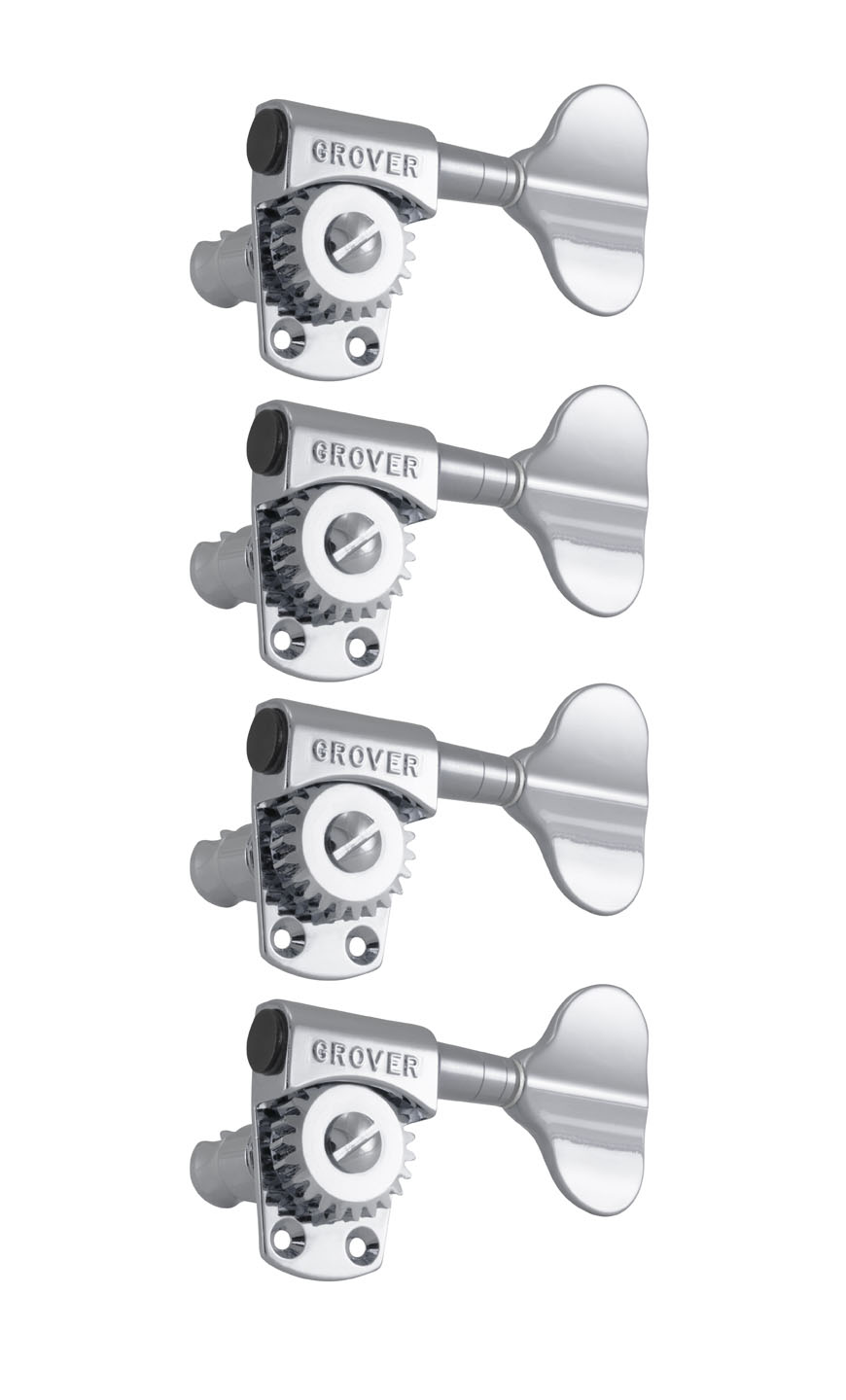

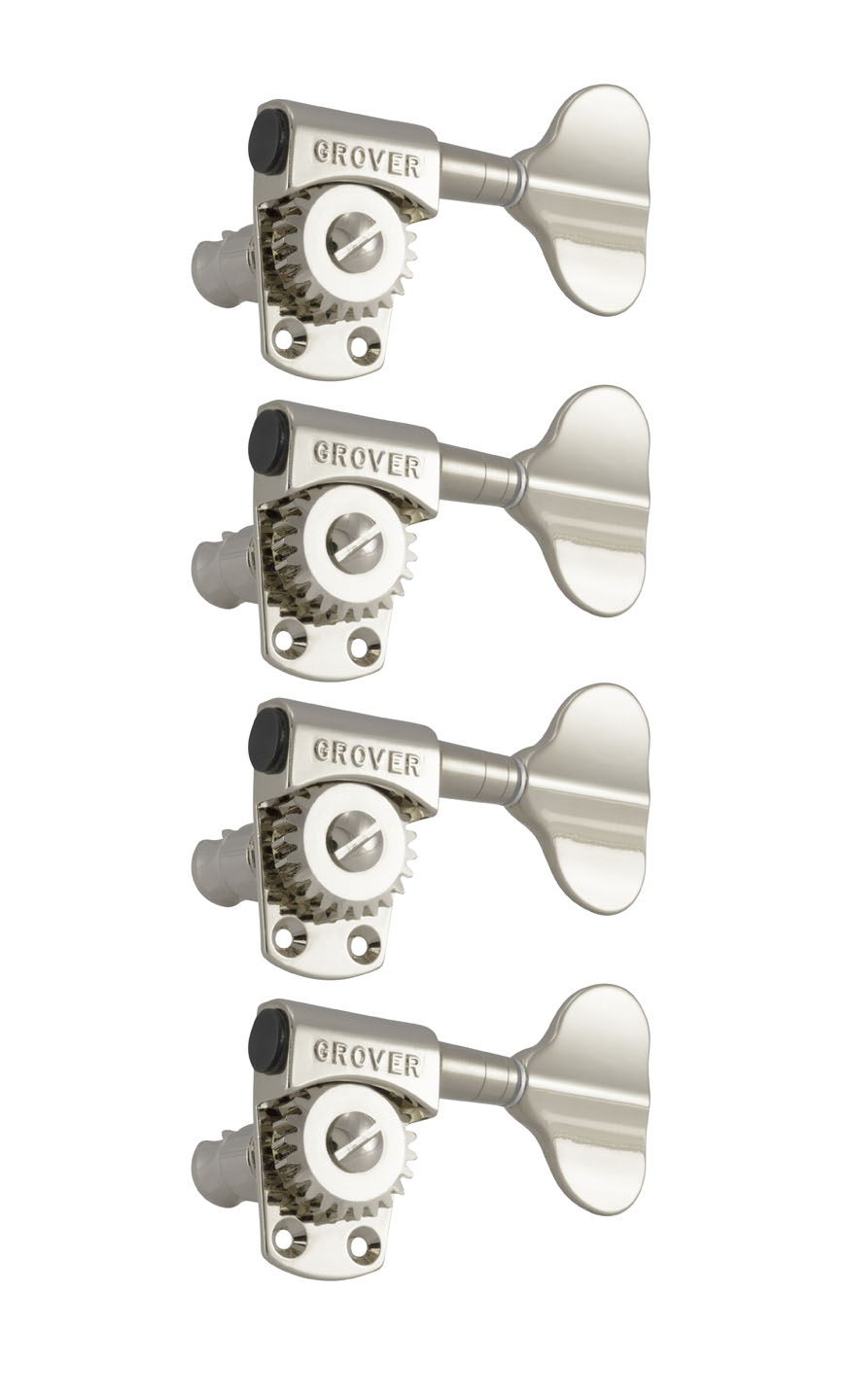

For standard 4-in-line bass guitars, 4 Bass, Set of 4
No. 145N4 Nickel
No. 145C4 Chrome

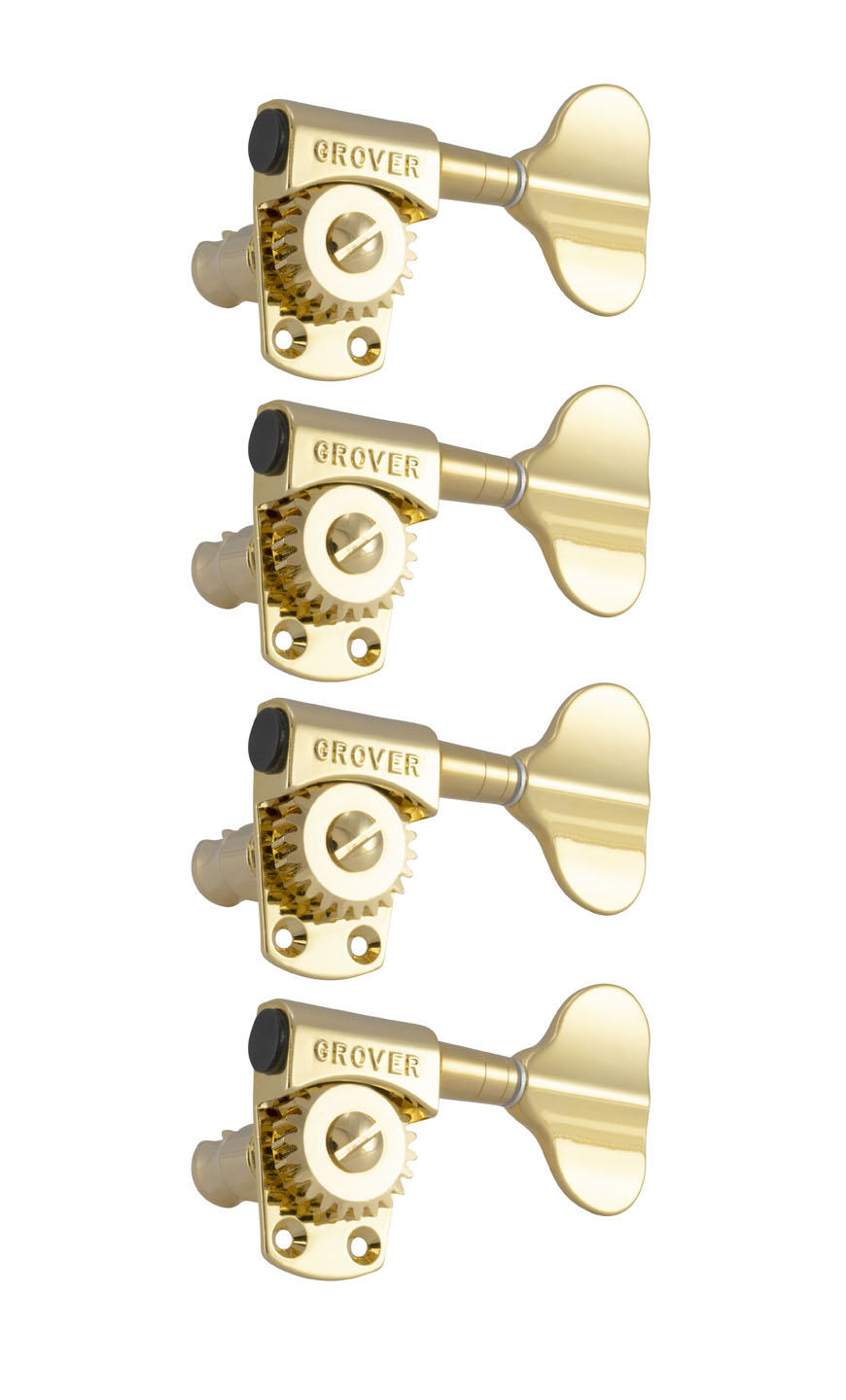

No. 145G4 Gold

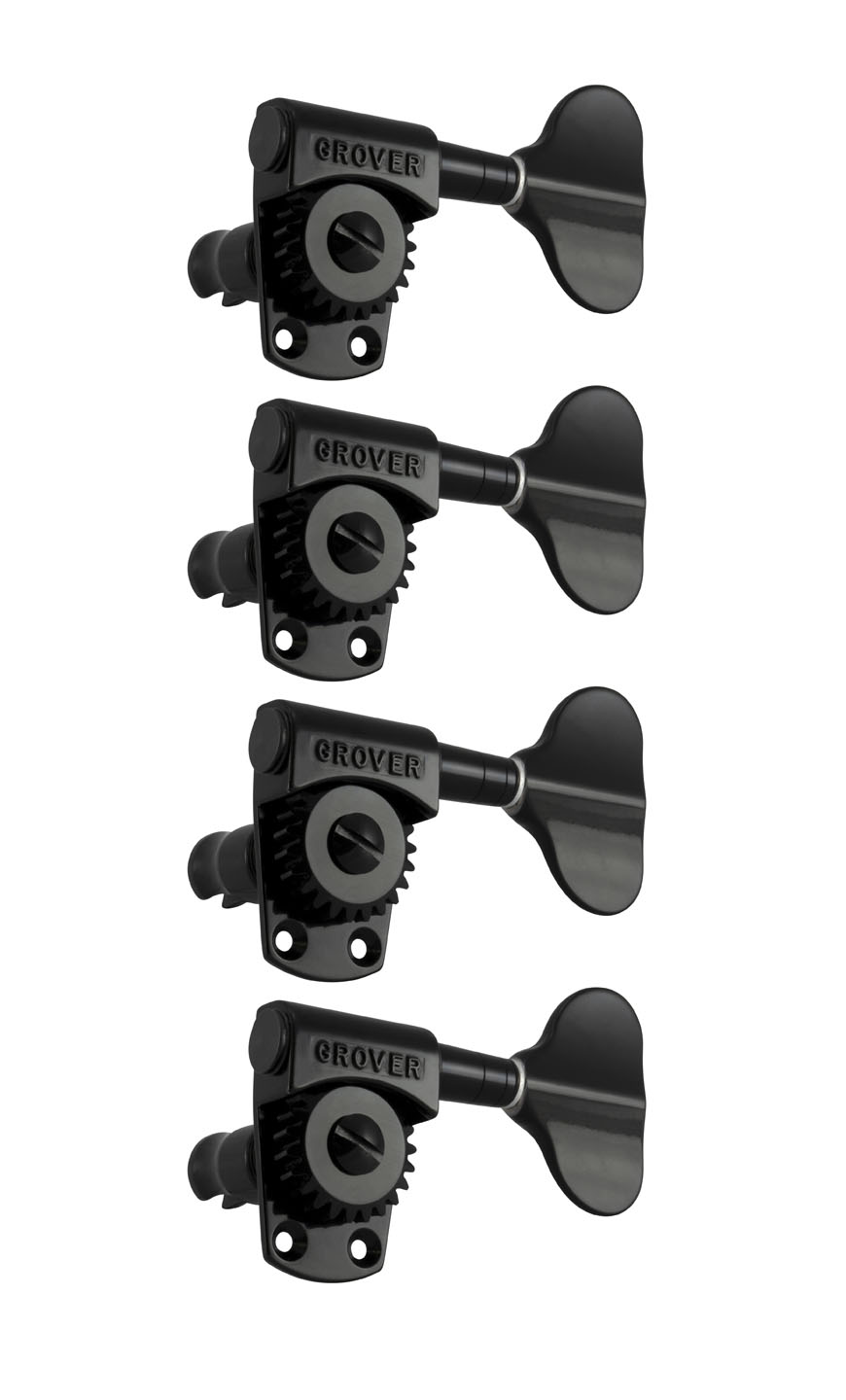

No. 145BC4 Black Chrome

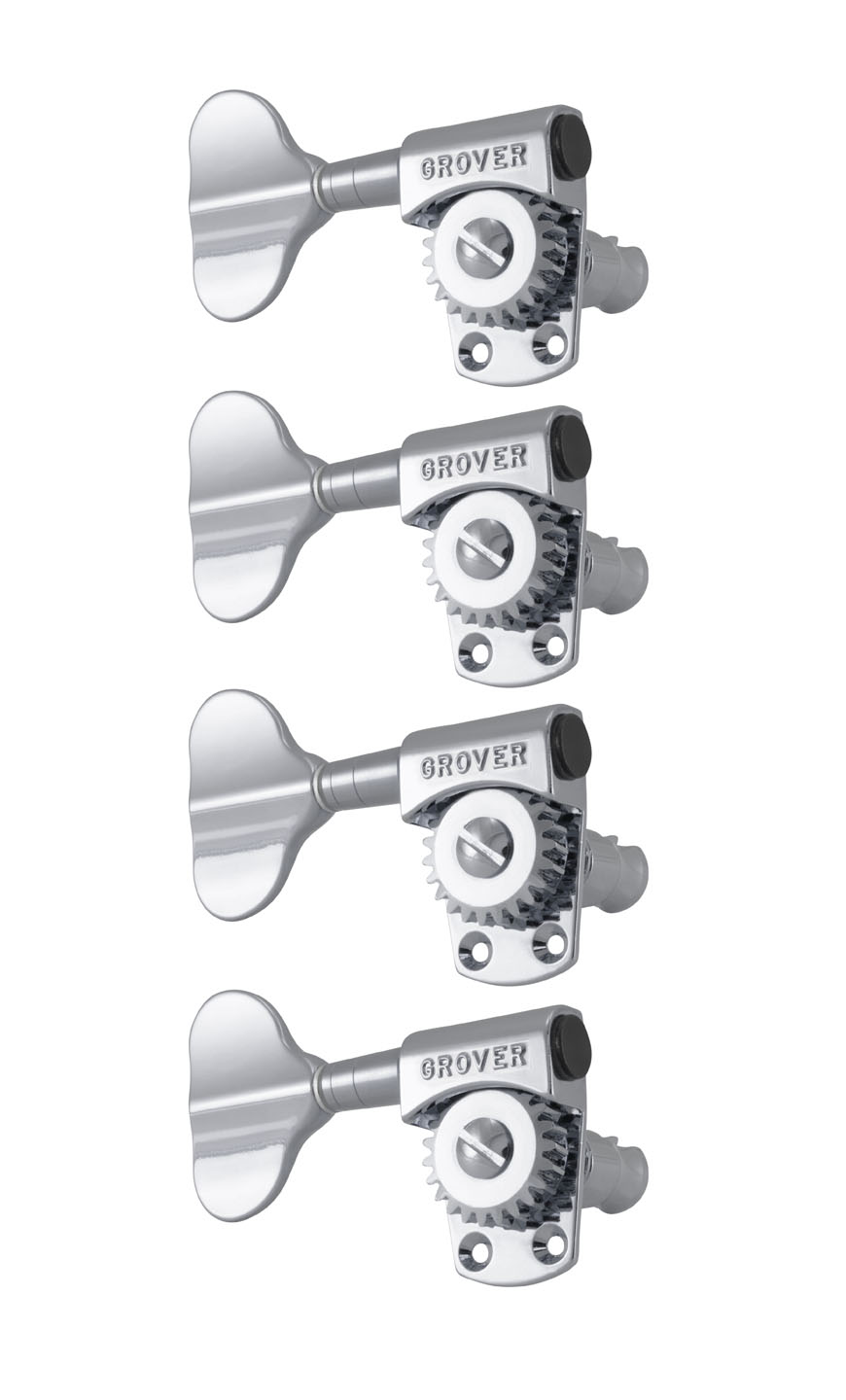

For left-hand 4-in-line bass guitars (reverse headstock), 4 Treble , Set of 4

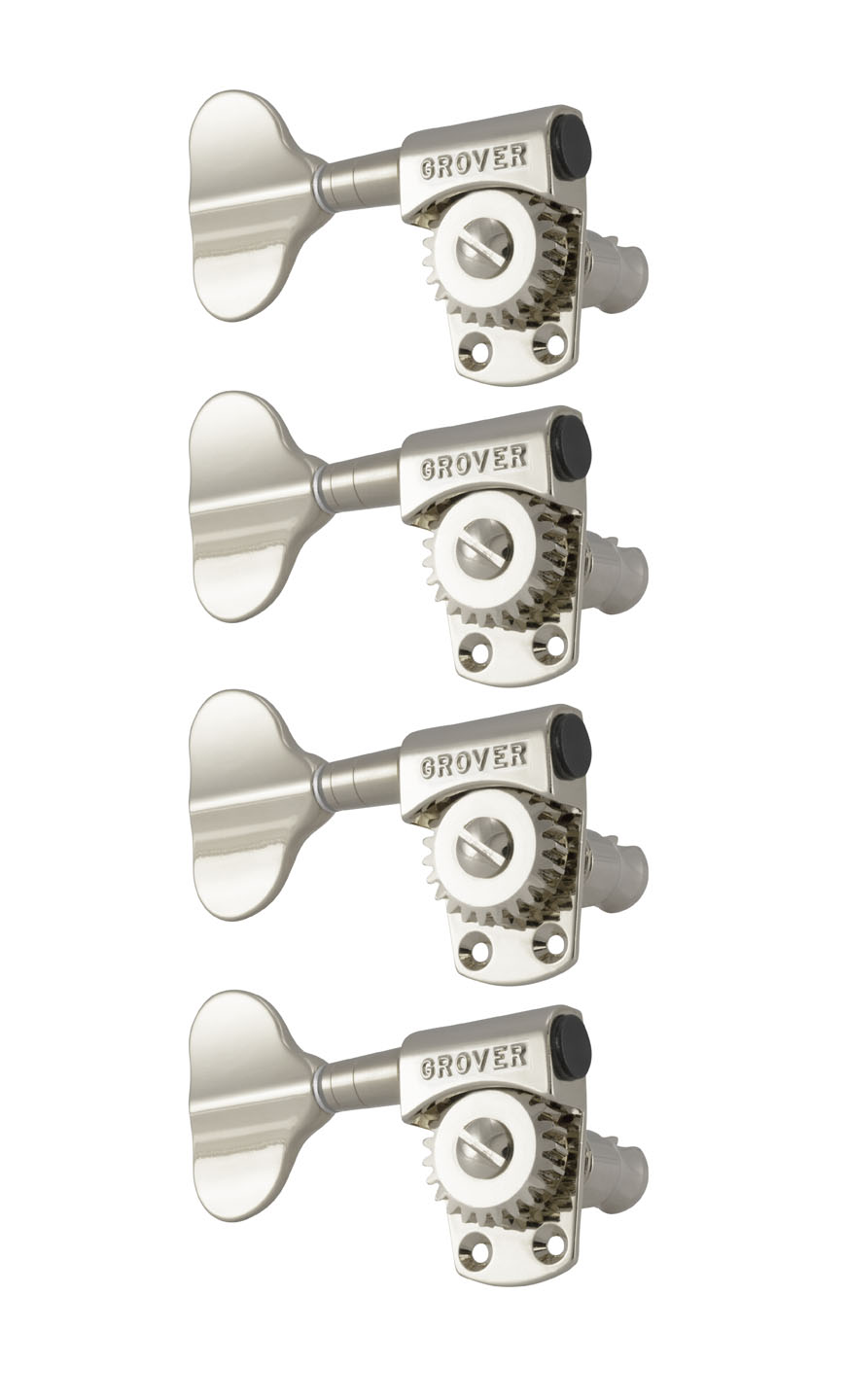

No. 145NL4 Nickel
No. 145CL4 Chrome

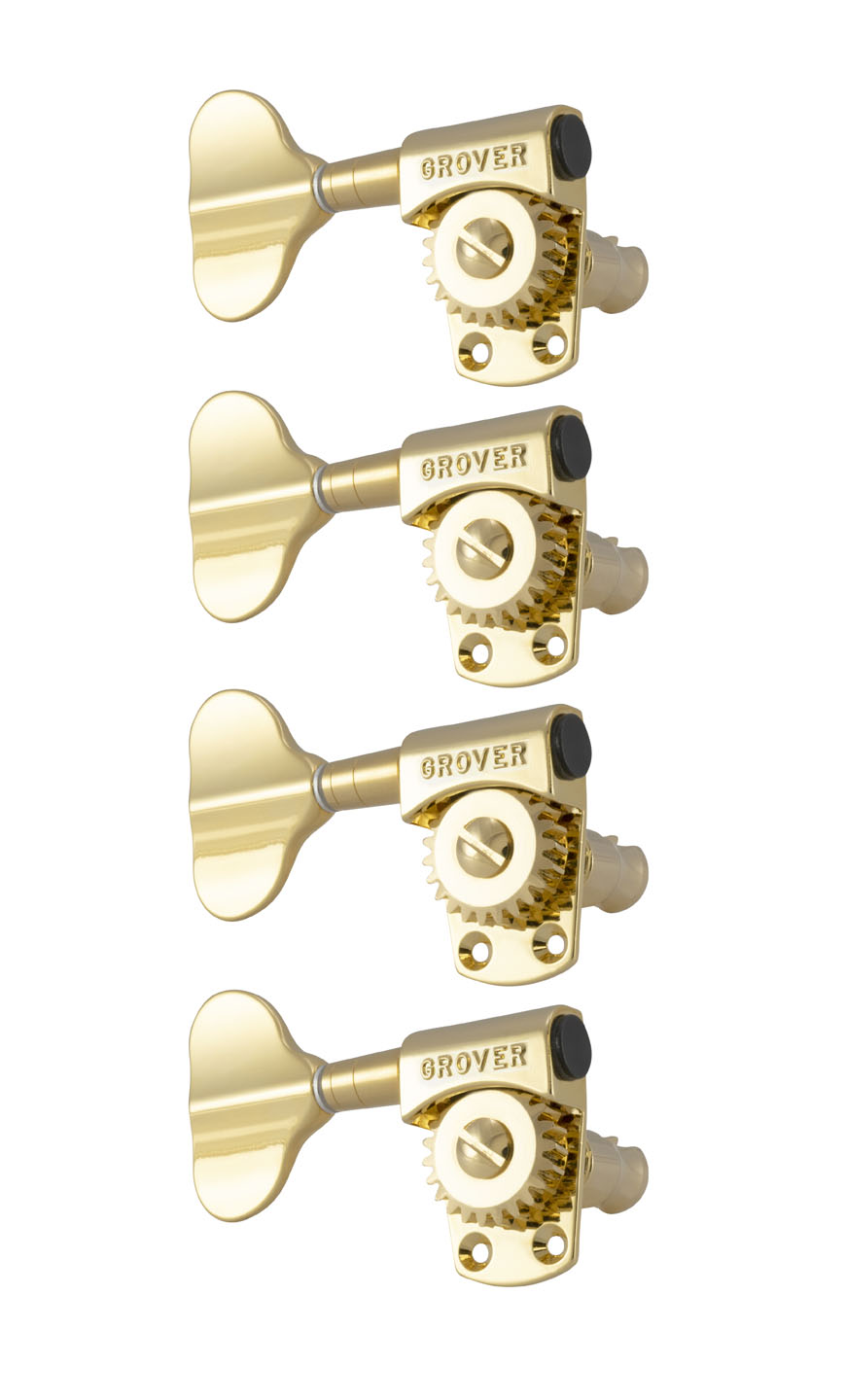

No. 145GL4 Gold

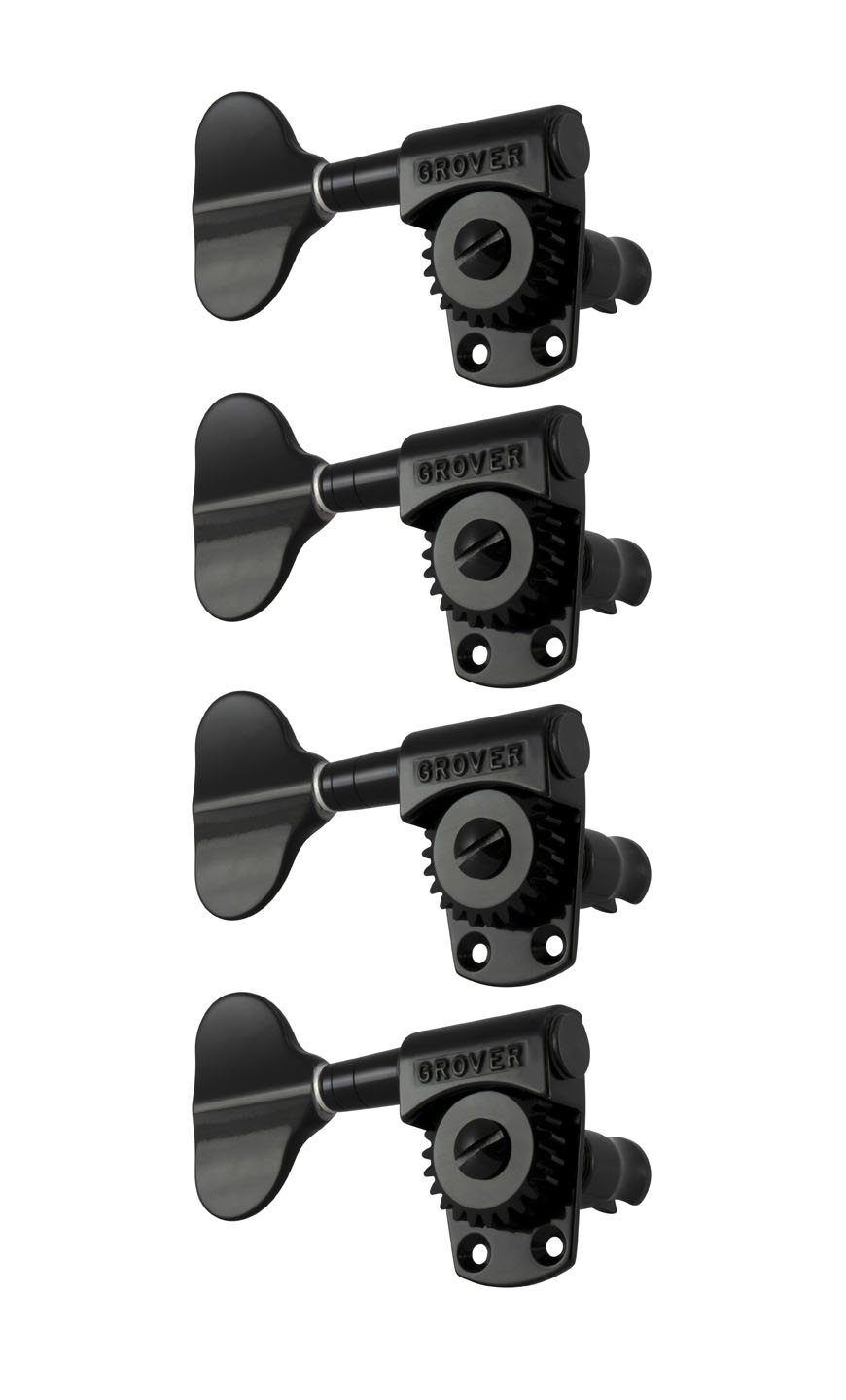

No. 145BCL4 Black Chrome
