The 409 Series professional mandolin machine heads are the latest in technology and beautifully designed to complement any style mandolin. A specially engineered, adjustable worm gear and die-cast plate maintain the center lines of the gear and worm to insure correct alignment for the finest tuning possible. The Vintage style tuners have a reversed “worm under” arrangement (worm gear below the post gear) for vintage or retro instruments using that configuration.
- Open gears in vintage “worm under” configuration
- Die-cast plate
- Bell-top button screw for vintage look
- 18:1 gear ratio
- 25/64” post hole
- Post length to hole: 15.1mm
- Overall post length: 30.3mm
- Weight per pc/per set: 2.2oz/4.4oz
- Max. string gauge: .074”
- Hardware included (screws)
- Drop-in replacement for: None at this time
Available in:
Standard 4 + 4, For Vintage “A” style Mandolins with Pearloid Buttons, Set of 2

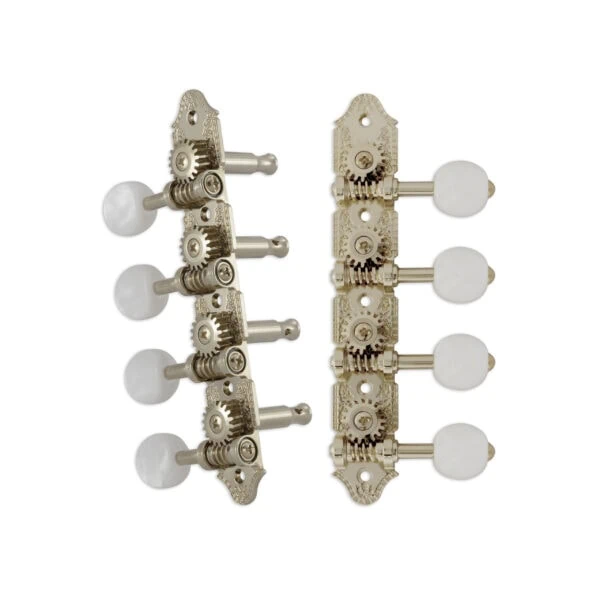

No. 409VN Nickel
No. 409VC Chrome

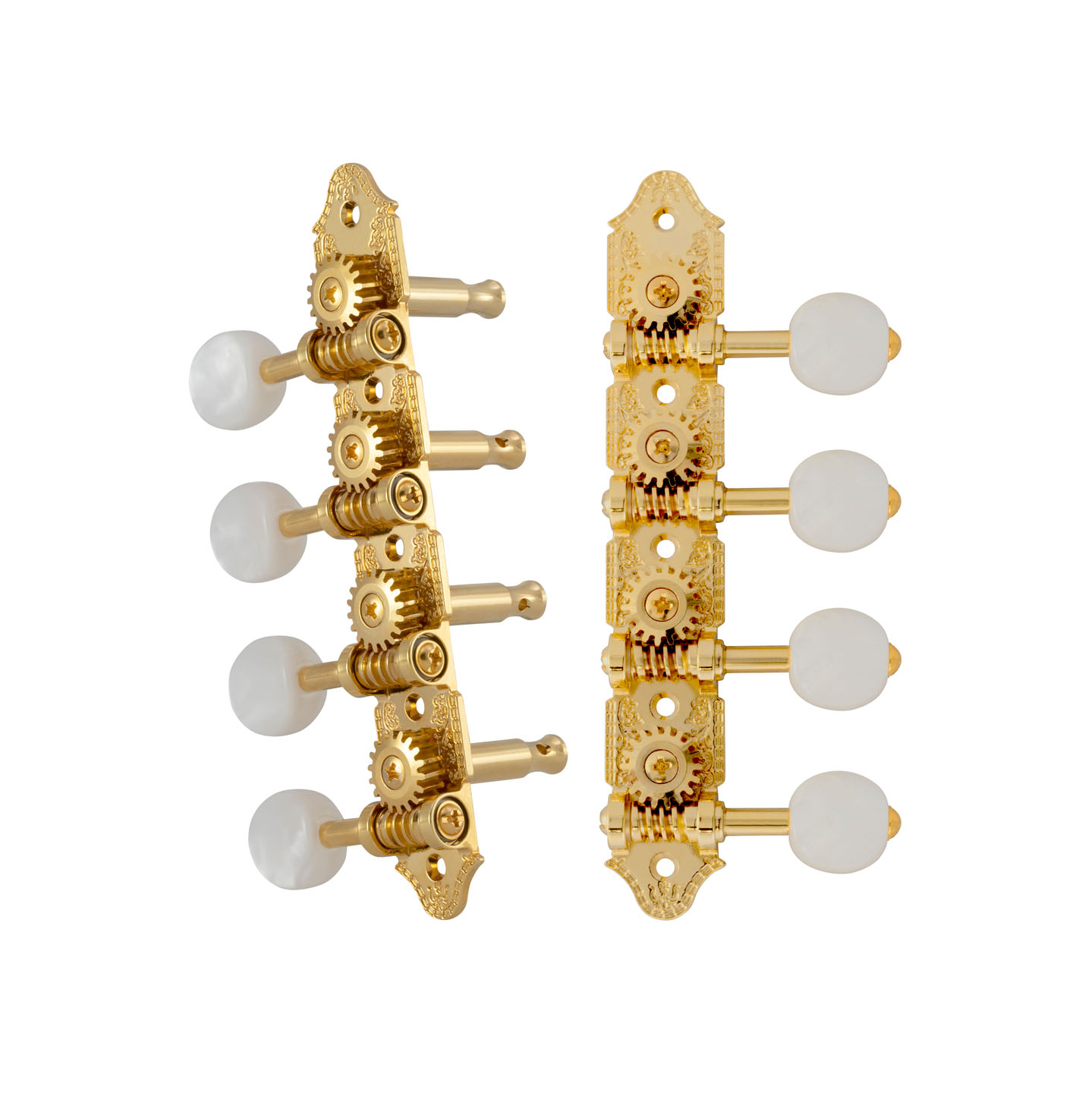

No. 409VG Gold
Standard 4 + 4, For Vintage “A” style Mandolins with Black Buttons, Set of 2
No. 409VNB Nickel

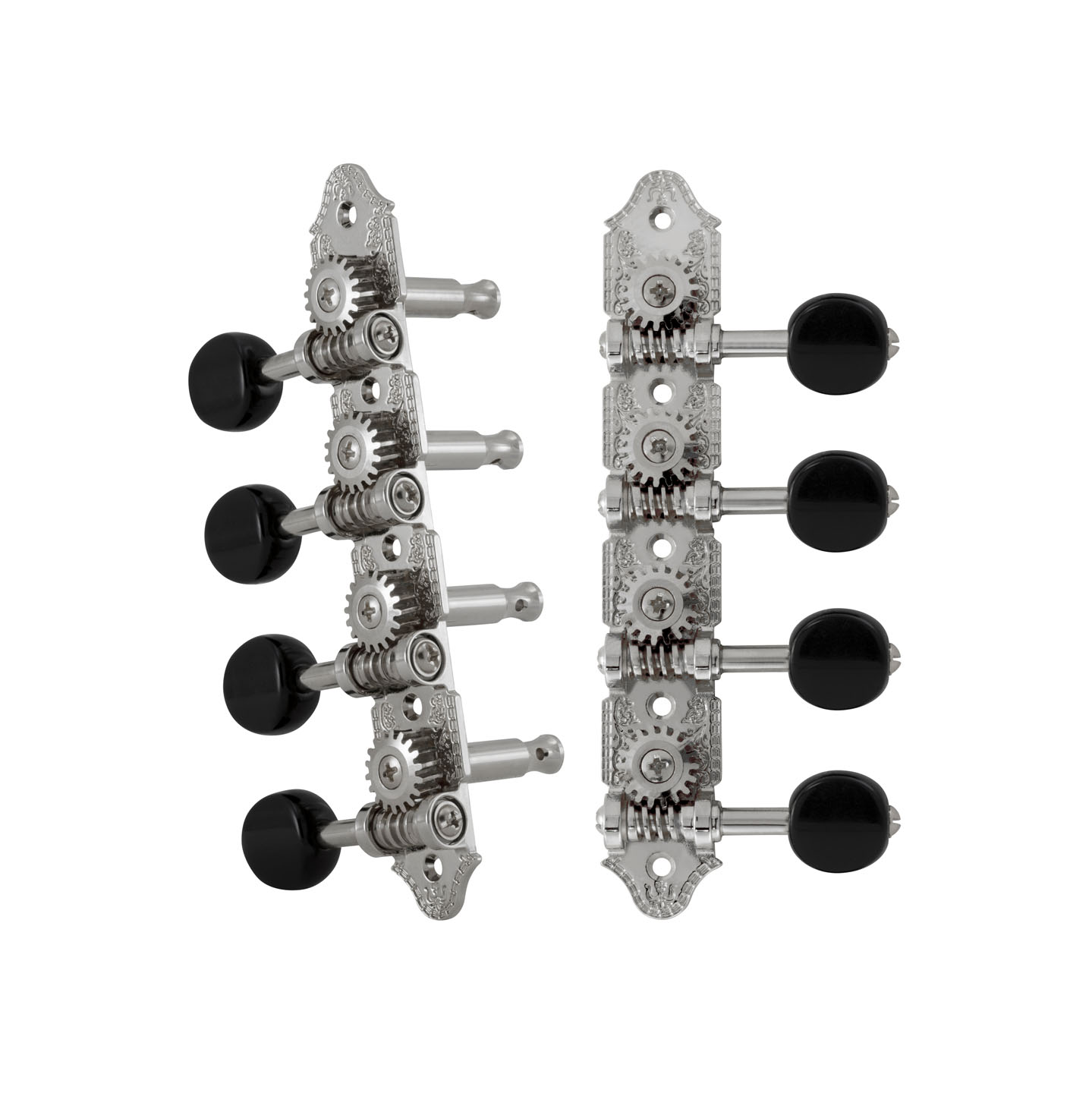

No. 409VCB Chrome
No. 409VGB Gold
Standard 4 + 4, For Vintage “A” style Mandolins with White Buttons, Set of 2
No. 409VNW Nickel
No. 409VCW Chrome

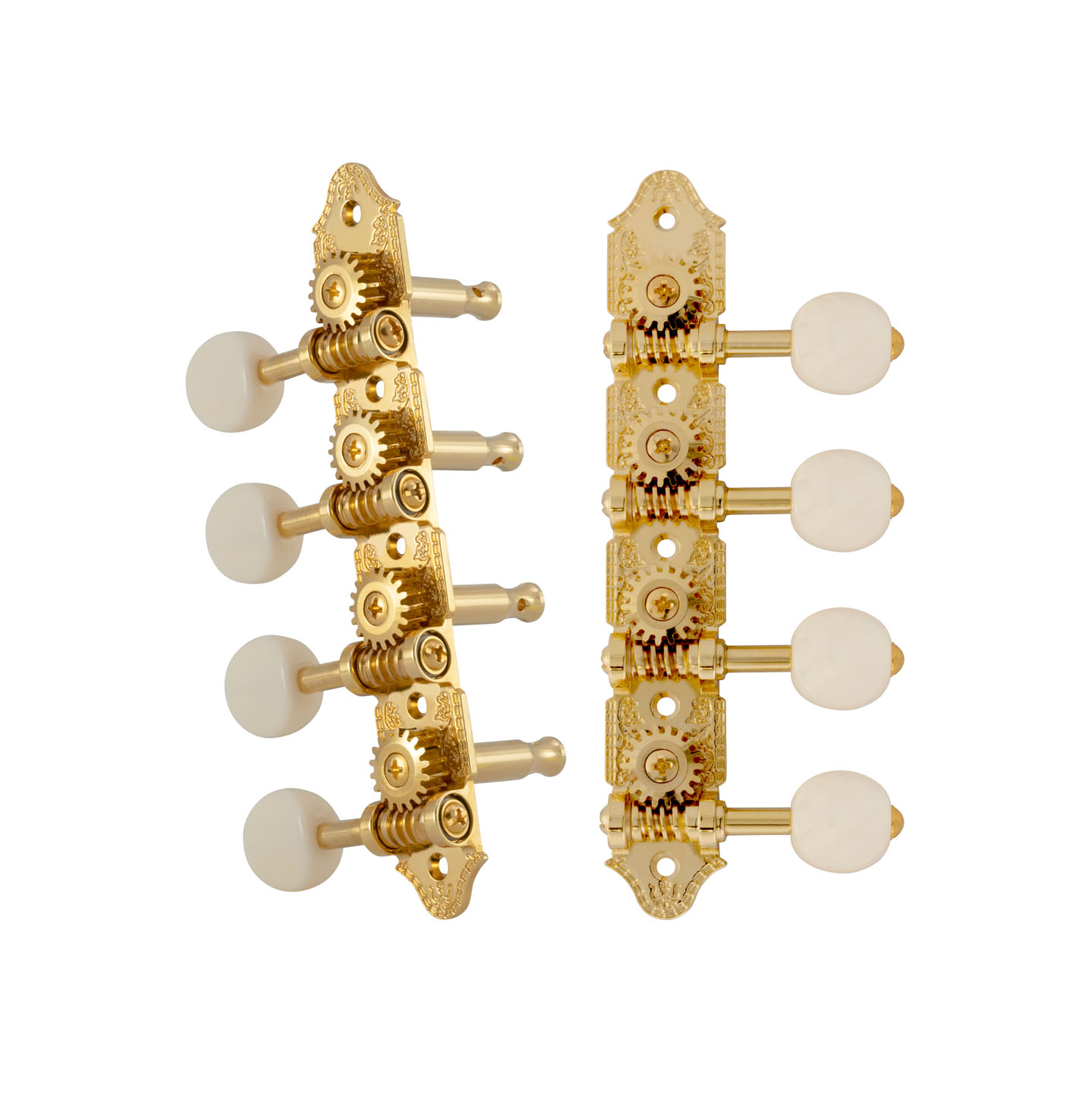

No. 409VGW Gold
