The 210 Series is designed specifically for use with pedal steel guitars. The shortened string post and bushing are designed for the slotted head of a pedal steel. It will accommodate a headstock thickness varying from .256” (7.1mm) to .400” (10.16mm). The string post extends .900” (22.87mm) from the base of the housing. The housing has a mounting pin at the back, eliminating the need for a mounting screw. This also facilitates mounting on the cast headstocks used on pedal steel guitars.
• Accommodates a headstock thickness varying from .256” (7.1mm) to .400” (10.16mm)
• Sealed-in, lubricated gears
• 14:1 gear ratio
• 25/64” post hole
• Post length to hole: 18mm
• Overall post length: 22.87mm
• Weight per pc/per set: 1.1oz / 11.0oz
• Max. string gauge: .74”
• Hardware included (bushings, washers)
• Drop-in replacement for: None at this time
Available in:
For pedal steel guitars, 5 Treble and5 Bass, Set of 10
No. 210N Nickel

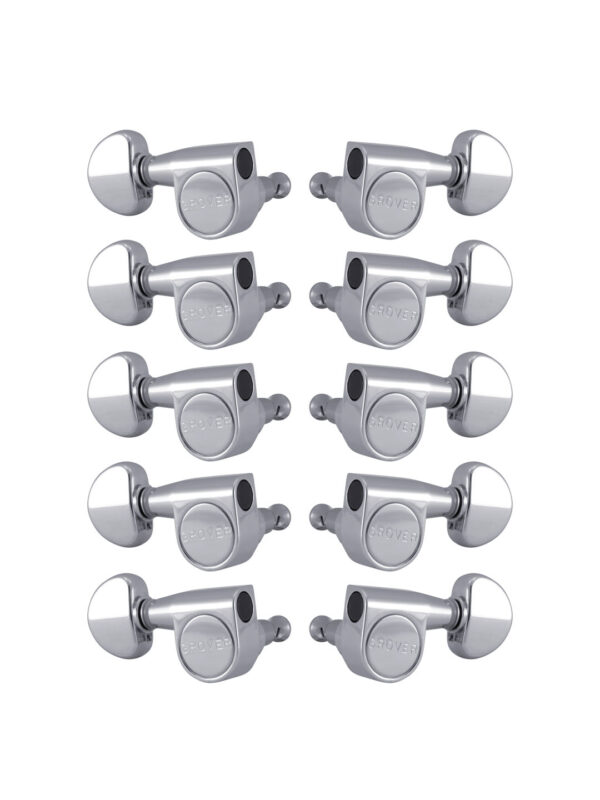

No. 210C Chrome

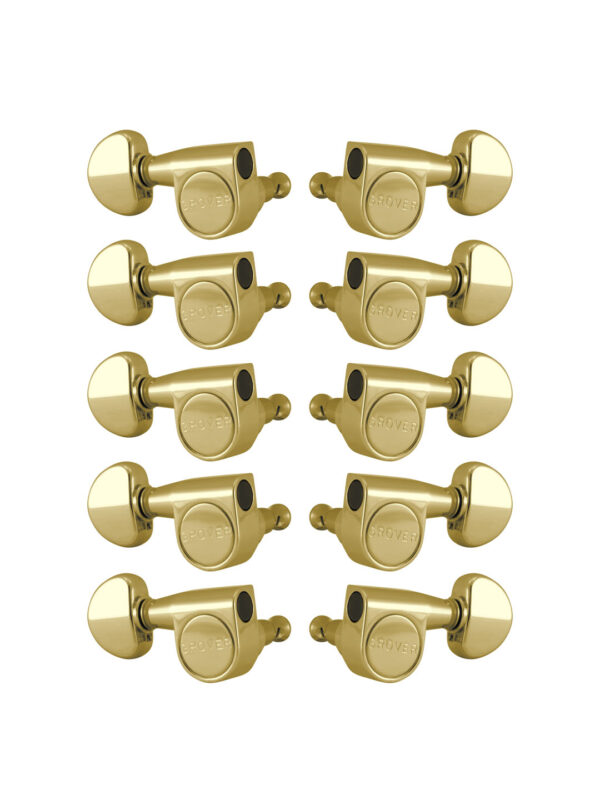

No. 210G Gold
