VINTAGE DELUXE (138 SERIES)

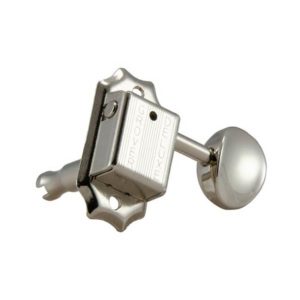

The Vintage Deluxe (138 Series) offers the same vintage styling of our 133 Series, but with 3 machine heads mounted on a plate. The worm and gear are cut to mesh perfectly, thereby eliminating backlash and slippage. With 15:1 gear ratio.

The 138 Series is engineered to the most precise standards of excellence with the classic look of vintage styling. Worm and gear are cut to mesh perfectly, thereby eliminating backlash and slippage. The housings are self-lubricating for a lifetime of trouble-free service.

  • Sealed-in, lubricated gears
  • Stamped housing
  • 14:1 gear ratio

Vertical (for solid headstock)

  • 23/64” post hole
  • Post length to hole: 22.6mm
  • Overall post length: 27.8mm
  • Weight per pc/per set: 2.8oz/5.6oz
  • Max. string gauge: .074”
  • Hardware included (bushings, screws)
  • Drop-in replacement for: None at this time

Horizontal (for slotted headstock)

  • 15/64” post hole
  • Post length to 1st hole: 13mm
  • Post length to 2nd hole: 11mm
  • Overall post length: 27.8mm
  • Weight per pc/per set: 2.8oz/5.6oz
  • Max. string gauge: .074”
  • Hardware included (screws)
  • Drop-in replacement for: None at this time

Available in:

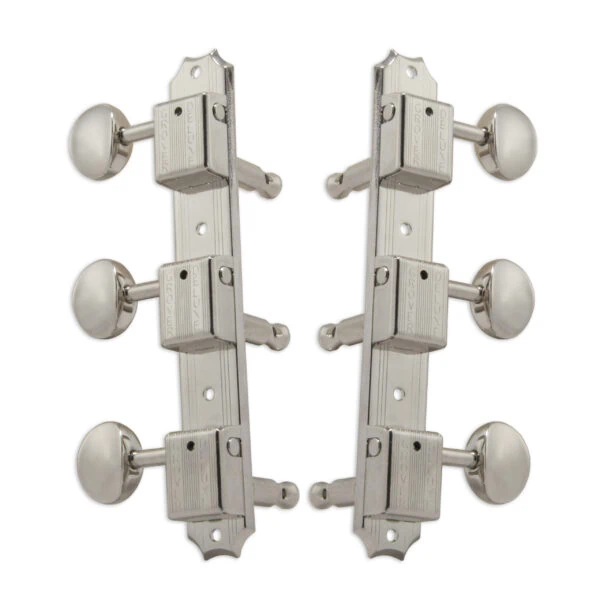

For Solid Guitar Headstocks (Vertical), 3 Treble and 3 Bass on a Plate, Set of 2
No. V138N Nickel
No. V138C Chrome
No. V138G Gold

For Slotted Guitar Headstocks (Horizontal), 3 Treble and 3 Bass on a Plate,
Set of 2
No. H138N Nickel
No. H138C Chrome
No. H138G Gold

Schematic Drawing

V138 Series
H138 Series
