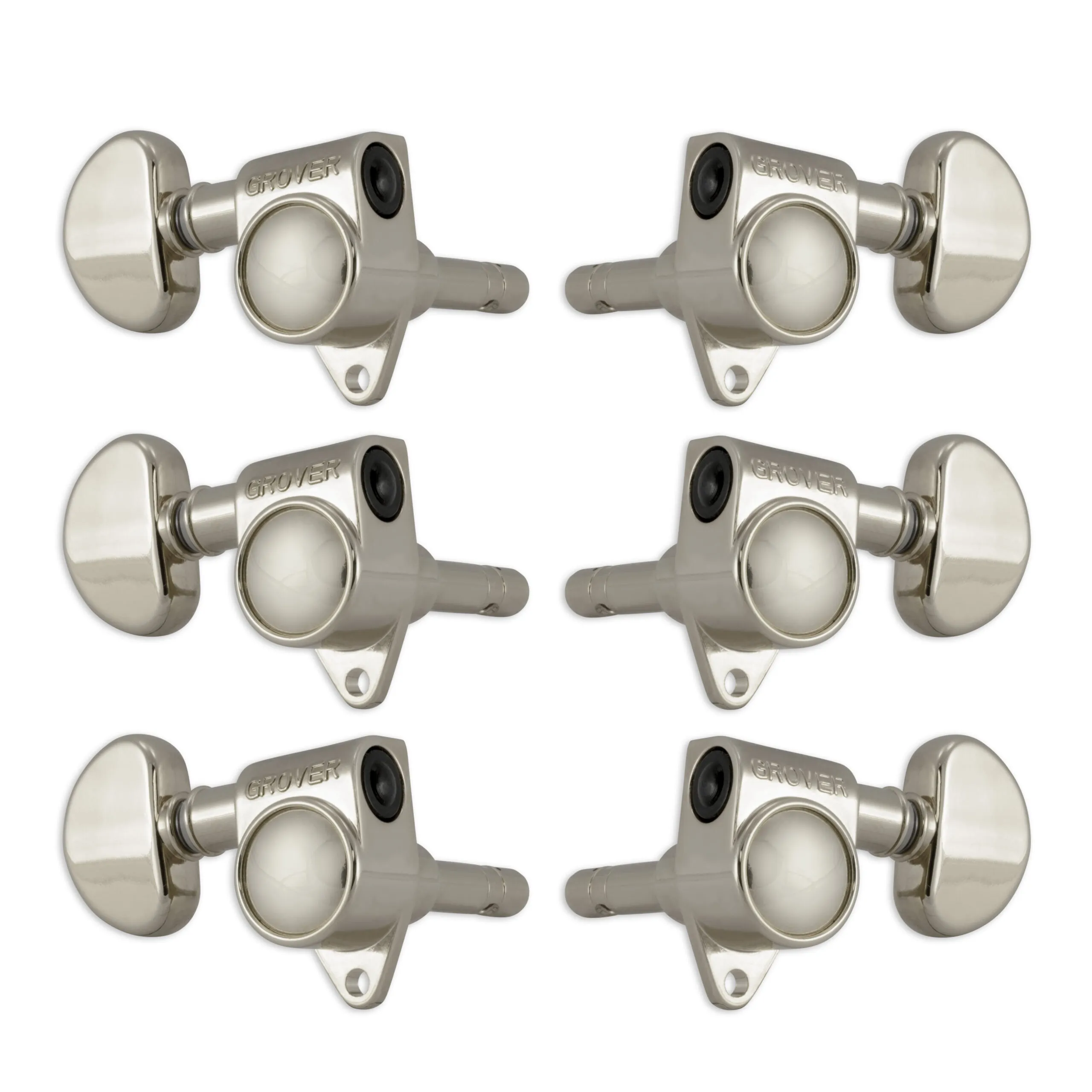

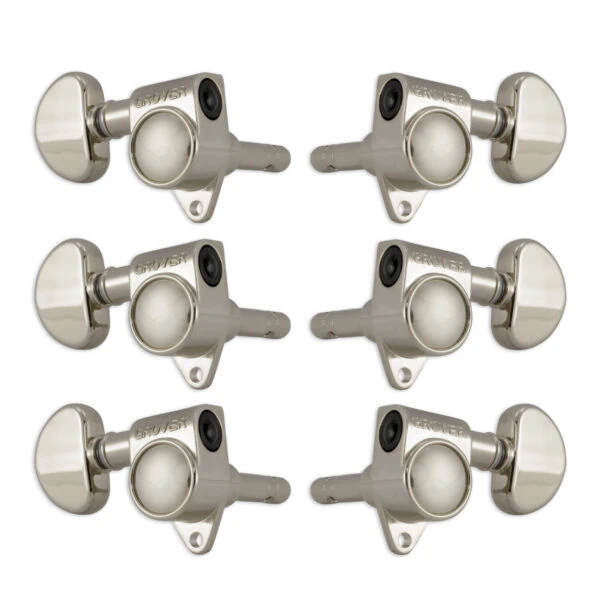

LOCKING ROTOMATICS® (106 SERIES)

The Locking Rotomatics® (106 Series) are innovations in engineering and design. These locking machine heads give you the ease of use provided by a Rotomatic® style machine head and the positive locking of our internal cam post. With 18:1 gear ratio.

The 106 Series are innovations in engineering and design. These locking machine heads give you the ease of use provided by a Rotomatic® style machine head and the positive locking of our internal cam post. Simply insert the string through the string hole, pull to tension by hand and begin tuning. As you start to tune, only the locking cam in the string post turns. Once the string is locked, the string post begins to turn allowing you to bring the string to pitch. In less then one revolution of the string post, you will be in tune and stay in tune. Gear ratio is 18:1.

  • Sealed-in, lubricated gears
  • 18:1 gear ratio
  • 25/64” post hole
  • Post length to hole: 24.9mm
  • Overall post length: 32.5mm
  • Weight per pc/per set: 1.6oz/9.6oz
  • Max. string gauge: .054”
  • Hardware included (bushings, washers, screws)
  • Drop-in replacement for:
    • 102-18 Series
    • 102V Series
    • 103 Series
    • 106 Series
    • 109 Series
    • 109-18 Series
    • 135 Series (Top mounting hole will be visible)
    • 136 Series (Top mounting hole will be visible)
    • 502 Series
    • 509 Series

Available in:
For standard guitars, 3 Treble and 3 Bass, Set of 6
No. 106N Nickel
No. 106C Chrome
No. 106G Gold
No. 106BC Black Chrome

Schematic Drawing

106 Series
