STA-TITE™ UKULELE WITH 18:1 GEAR RATIO (U99-18 SERIES) (Interchangeable Button Options)

The Sta-Tite™ Ukulele (U99-18 Series) is designed for precise tuning with the classic styling and multiple interchangeable button options. With 18:1 gear ratio.

The U99-18 Series is beautifully designed for precise tuning with the classic styling and multiple interchangeable button options. These high-end ukulele machine heads come mounted on a die-cast plate with a .827” (21mm) long post.

  • Open gears
  • 18:1 gear ratio
  • 22/64” post hole
  • Post length to hole: 16mm
  • Overall post length: 21mm
  • Weight per pc/per set: .9oz/3.6oz
  • Max. string gauge: .074”
  • Hardware included (bushings, screws)
  • Drop-in replacement for:
  • U98-18 Series

Available in:
For Standard Ukuleles, 2 Treble and 2 Bass, Set of 4

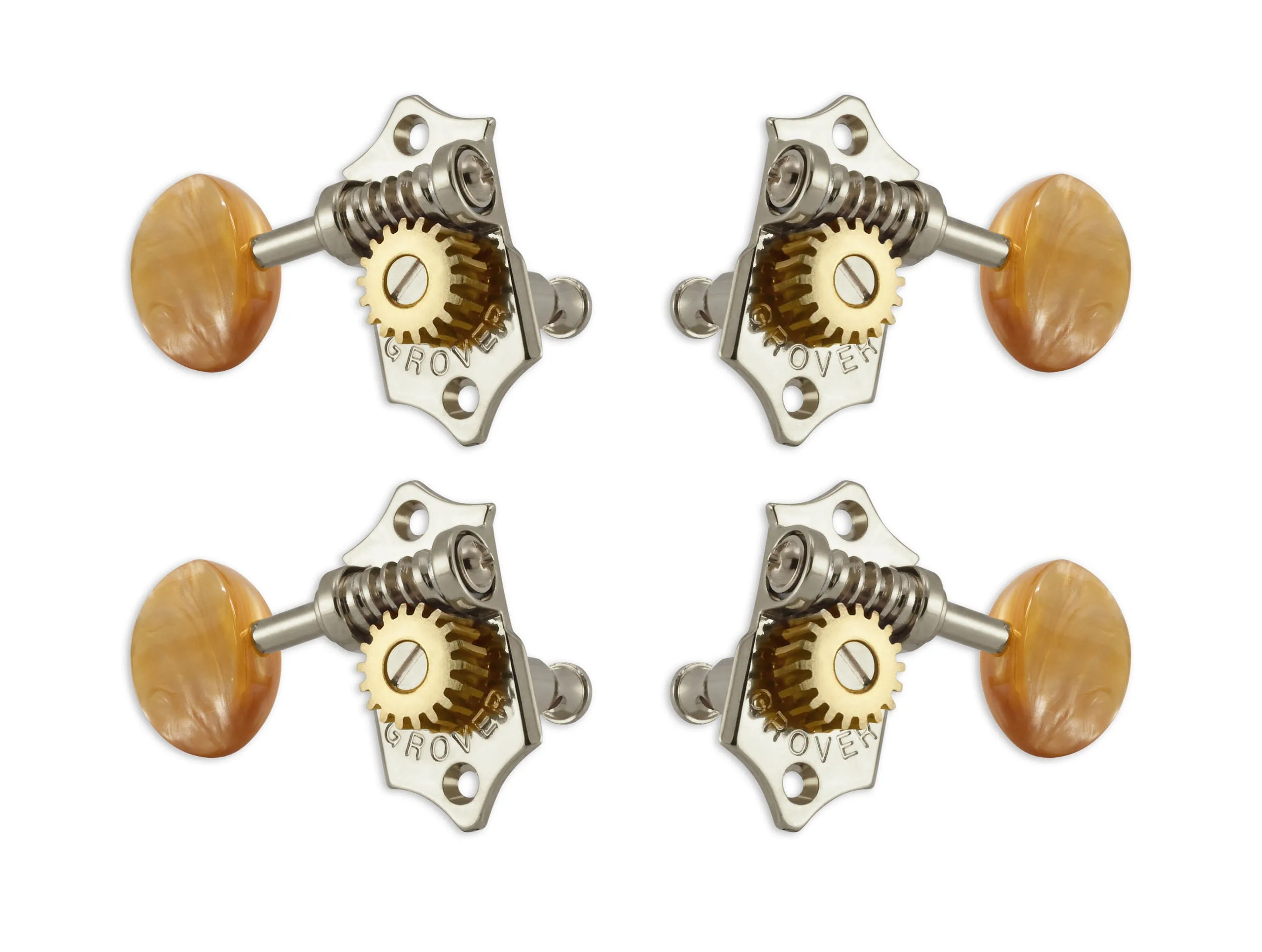

No. U99-18NA Nickel w/acrylic Amber buttons
No. U99-18CA Chrome w/acrylic Amber buttons
No. U99-18GA Gold w/acrylic Amber buttons

No. U99-18NE Nickel w/Ebony buttons
No. U99-18CE Chrome w/Ebony buttons
No. U99-18GE Gold w/Ebony buttons

No. U99-18NR Nickel w/Rosewood buttons
No. U99-18CR Chrome w/Rosewood buttons
No. U99-18GR Gold w/Rosewood buttons

Schematic Drawing

U99-18 Series (NB)
