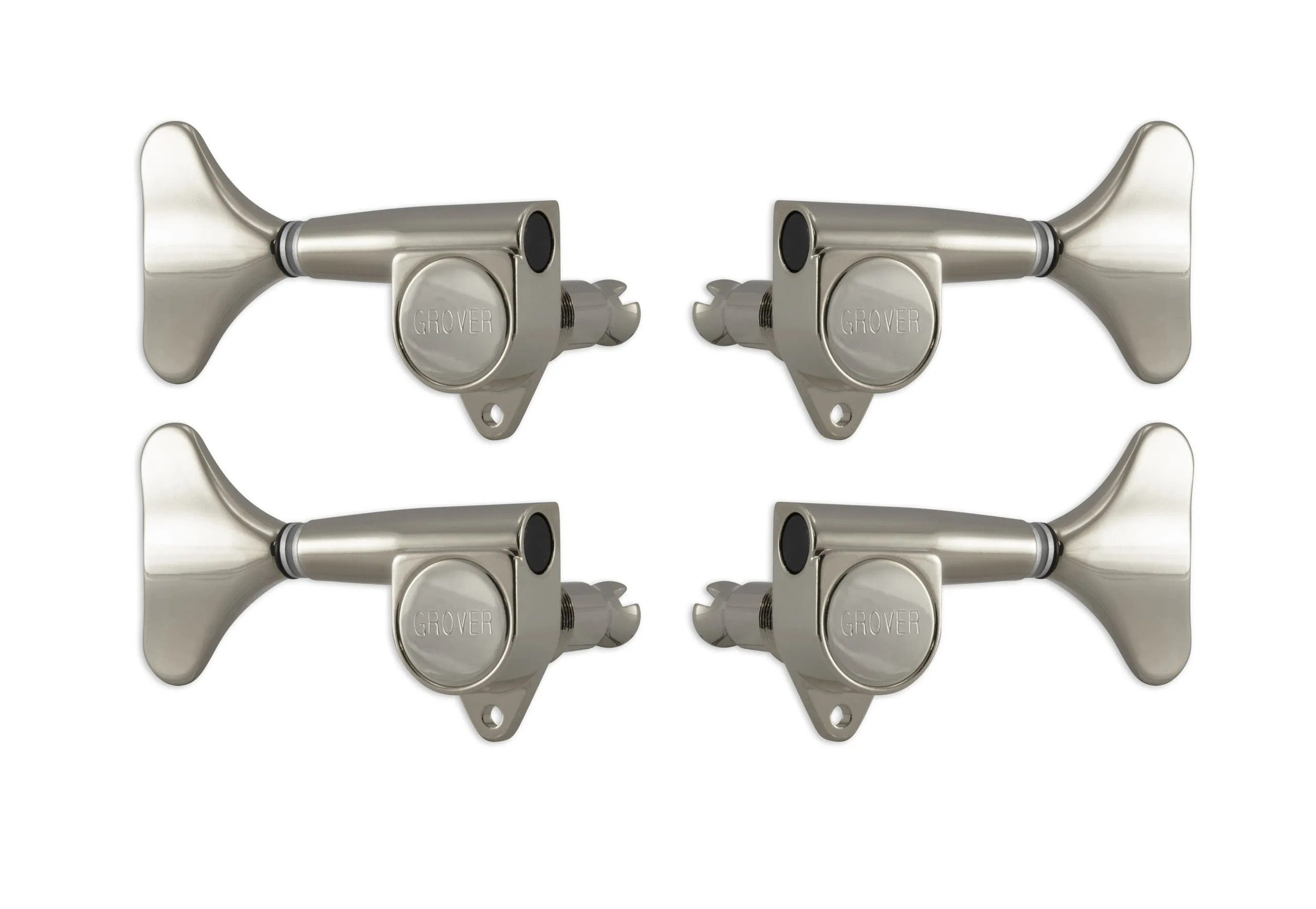

MINI BASS (144 SERIES)

The Mini Bass (144 Series) is lightweight, compact, and durable for modern electric basses. Housing is specially machined to achieve precise tolerance to prevent slippage and allow for fine tuning with ease. With 20:1 gear ratio.

The 144 Series is lightweight, compact and durable for modern electric basses. Housing is specially machined to achieve precise tolerance to prevent slippage and allow for fine tuning with ease. Sealed gear box has permanent lubrication that makes the MINI friction-free for life.

  • Sealed-in, lubricated gears
  • Compact and lightweight for modern electric basses
  • 20:1 gear ratio
  • 35/64” post hole
  • Post length to hole: 22.2mm
  • Overall post length: 26.8mm
  • Weight per pc/per set: 2.4oz/9.6oz
  • Max. string gauge: .095”
  • Hardware included (bushings, washers, screws)
  • Drop-in replacement for: None at this time

Available in:
For standard bass guitars, 2 Treble, 2 Bass, Set of 4
No. 144N Nickel
No. 144C Chrome
No. 144G Gold
No. 144BC Black Chrome

For standard 4-in-line bass guitars, 4 Bass, Set of 4
No. 144N4 Nickel
No. 144C4 Chrome
No. 144G4 Gold
No. 144BC4 Black Chrome

For left-hand 4-in-line bass guitars (reverse headstock), 4 Treble , Set of 4
No. 144NL4 Nickel
No. 144CL4 Chrome
No. 144GL4 Gold
No. 144BCL4 Black Chrome

Schematic Drawing

144 Series
