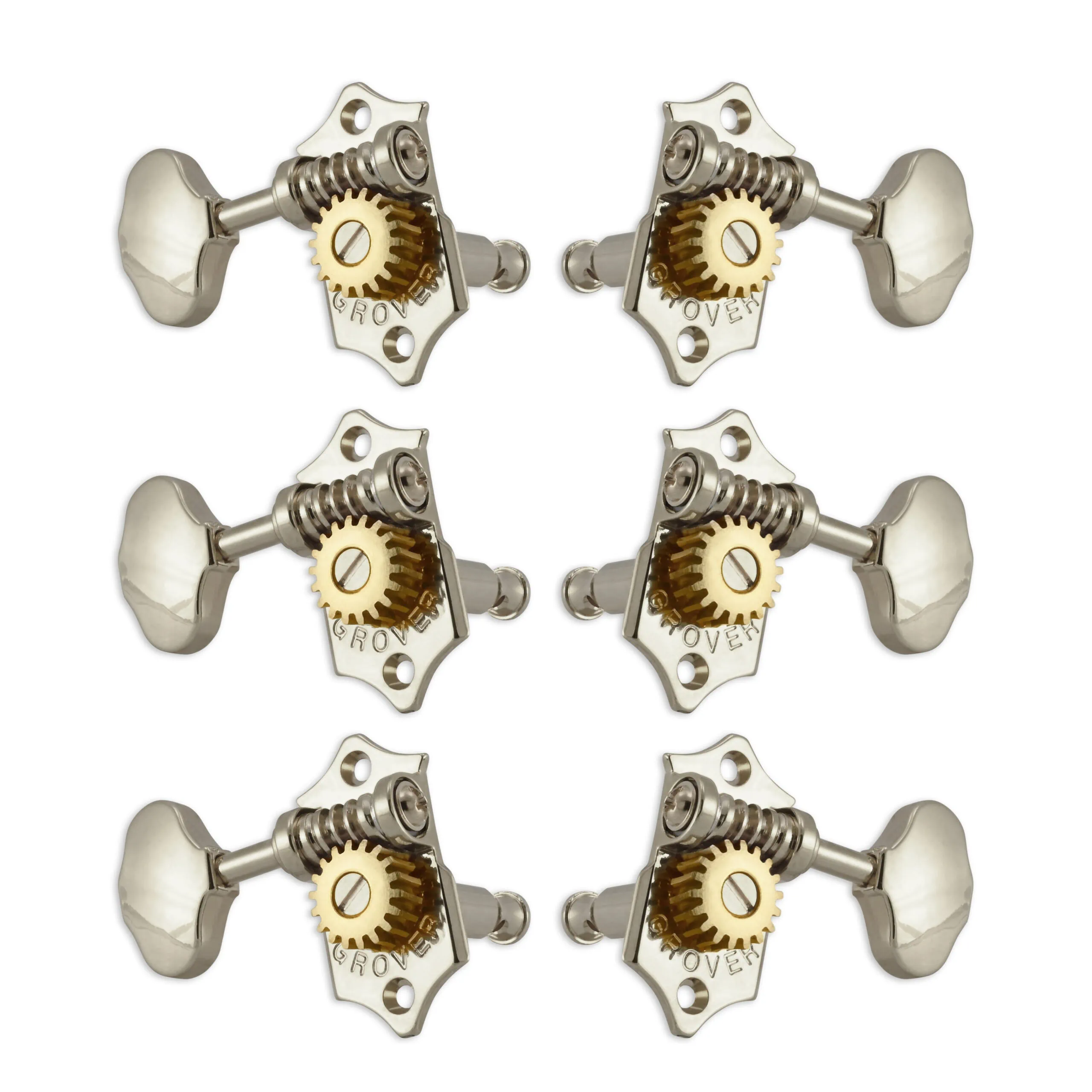

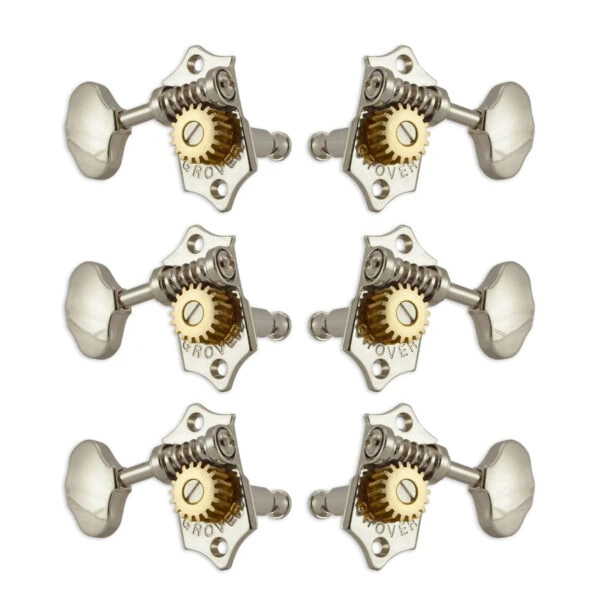

The 97-18 Series is classic in design and feature a stylish die-cast plate with a butter bean button. These high-end open gear machine heads offer smooth and precise tuning.
- Open gears
- 18:1 gear ratio
Vertical (for solid headstock)
- 22/64” post hole
- Post length to hole: 22.53mm
- Overall post length: 28.77mm
- Weight per pc/per set: 1.0oz/6.0oz
- Max. string gauge: .074”
- Hardware included (bushings, screws)
- Drop-in replacement for: None at this time
Horizontal (for slotted headstock)
- 16/64” post hole
- Post length to hole: 13.37mm
- Overall post length: 28.56mm
- Weight per pc/per set: 1.0oz / 6.0oz
- Max. string gauge: .074”
- Hardware included (screws)
- Drop-in replacement for: None at this time
Available in:
For Solid Guitar Headstocks (Vertical), 3 Treble and 3 Bass, Set of 6
No. V97-18NA Nickel
No. V97-18CA Chrome
No. V97-18GA Gold
For Slotted Guitar Headstocks (Horizontal), 3 Treble and 3 Bass, Set of 6
No. H97-18NA Nickel
No. H97-18CA Chrome
No. H97-18GA Gold
