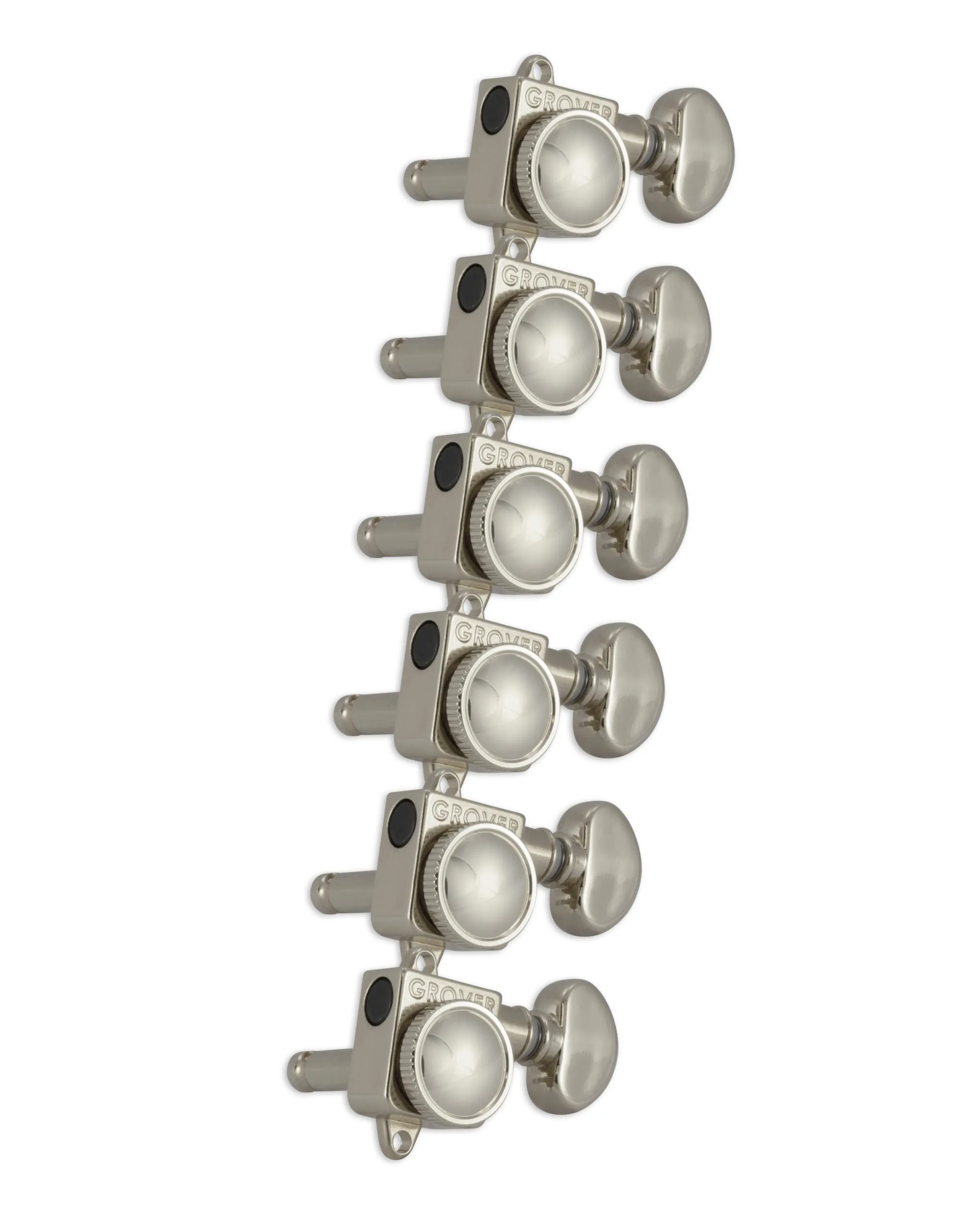

MINI ROTO-GRIP LOCKING ROTOMATICS® (505FV SERIES)

The Mini Roto-Grip Locking Rotomatics® (505FV Series) design allows you to upgrade your vintage Fender® tuners to a more modern style locking tuner without making any modifications to your guitar. With 18:1 gear ratio.

The 505FV Series design allows you to upgrade your vintage Fender® tuners to a more modern style locking tuner without making any modifications to your guitar. The overlapping ear design utilizes the existing screw holes, while the included drop-in bushings mean no modifications needed for the post holes.

  • Sealed-in, lubricated gears
  • 18:1 gear ratio
  • 11/32” post hole
  • Post length to hole: 21mm
  • Overall post length: 25.54mm
  • Weight per pc/per set: 1.4oz/8.4oz
  • Max. string gauge: .064”
  • Hardware included (bushings, screws)
  • Drop-in replacement for:

Available in:
For standard 6-in-line guitars, 6 Bass, Set of 6
No. 505FVN Nickle
No. 505FVC Chrome
No. 505FVG Gold

Schematic Drawing

505FV Series
