PEDAL STEEL GUITAR (210 SERIES)

The Pedal Steel Guitar (210 Series) is designed specifically for use with pedal steel guitars. The shortened string post and bushing are designed for the slotted head of a pedal steel. With 14:1 gear ratio.

The 210 Series is designed specifically for use with pedal steel guitars. The shortened string post and bushing are designed for the slotted head of a pedal steel. It will accommodate a headstock thickness varying from .256” (7.1mm) to .400” (10.16mm). The string post extends .900” (22.87mm) from the base of the housing. The housing has a mounting pin at the back, eliminating the need for a mounting screw. This also facilitates mounting on the cast headstocks used on pedal steel guitars.

  • Accommodates a headstock thickness varying from .256” (7.1mm) to .400” (10.16mm)
  • Sealed-in, lubricated gears
  • 14:1 gear ratio
  • 25/64” post hole
  • Post length to hole: 18mm
  • Overall post length: 22.87mm
  • Weight per pc/per set: 1.1oz / 11.0oz
  • Max. string gauge: .74”
  • Hardware included (bushings, washers)
  • Drop-in replacement for: None at this time

Available in:

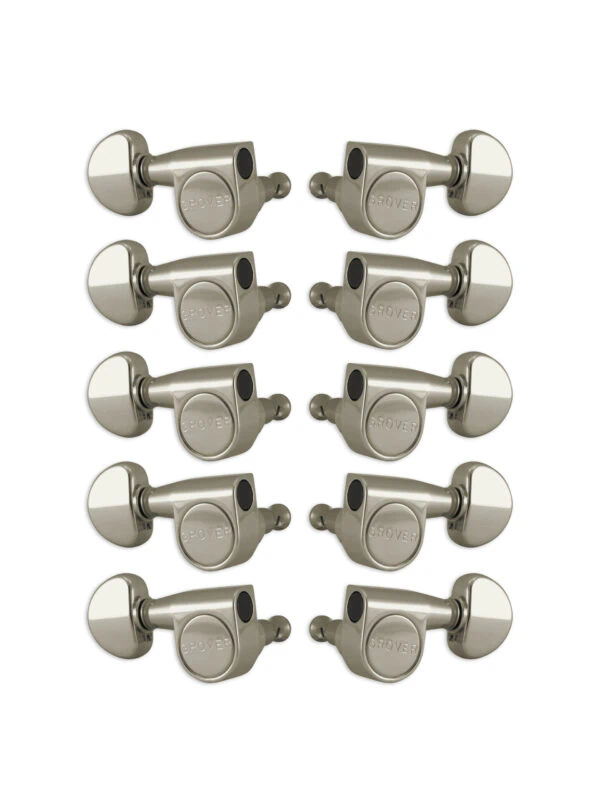

For pedal steel guitars, 5 Treble and 5 Bass, Set of 10
No. 210N Nickel
No. 210C Chrome
No. 210G Gold

Schematic Drawing

210 Series
