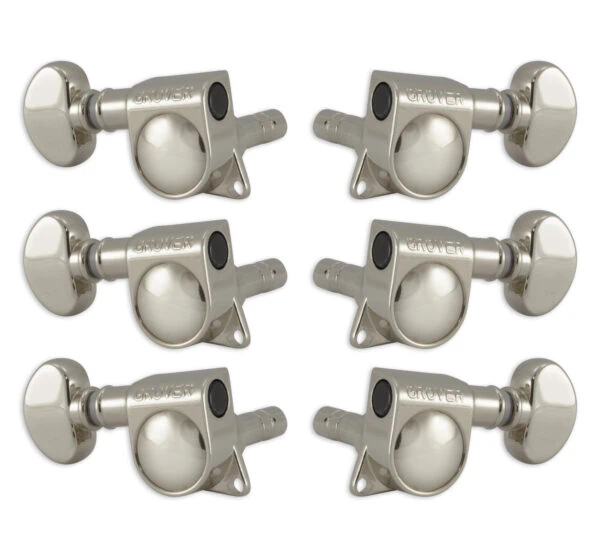

MID-SIZE LOCKING ROTOMATICS® (406 SERIES)

The Mid-Size Locking Rotomatics® (406 Series) gives you the same innovative engineering and classic design as the Standard Locking Rotomatics®, but with smaller buttons for 6-in-line guitars, or for those who prefer a little more space for their fingers. With 18:1 gear ratio.

The 406 Series gives you the same innovative engineering and classic design as the Standard Locking Rotomatics®, but with smaller buttons for 6-in-line guitars, or for those who prefer a little more space for their fingers. Simply insert the string through the string hole, pull to tension by hand and begin tuning. As you start to tune, only the locking cam in the string post turns. Once the string is locked, the string post begins to turn allowing you to bring the string to pitch. In less then one revolution of the string post, you will be in tune, and stay in tune. Gear ratio is 18:1.

  • Sealed-in, lubricated gears
  • 18:1 gear ratio
  • 25/64” post hole
  • Post length to hole: 20.20mm
  • Overall post length: 27.8mm
  • Weight per pc/per set: 1.2oz/7.2oz
  • Max. string gauge: .054”
  • Hardware included (bushings, washers, screws)
  • Drop-in replacement for:
    • 305 Series

Available in:
For standard guitars, 3 Treble and 3 Bass, Set of 6
No. 406N Nickel
No. 406C Chrome
No. 406G Gold
No. 406BC Black Chrome

For standard 6-in-line guitars, 6 Bass, Set of 6
No. 406N6 Nickel
No. 406C6 Chrome
No. 406G6 Gold
No. 406BC6 Black Chrome

For left-hand 6-in-line guitars (reverse headstock), 6 Treble, Set of 6
No. 406NL6 Nickel
No. 406CL6 Chrome
No. 406GL6 Gold
No. 406BCL6 Black Chrome

For 12-string guitars, 6 Treble and 6 Bass, Set of 12
No. 406N12 Nickel
No. 406C12 Chrome
No. 406G12 Gold
No. 406BC12 Black Chrome

Schematic Drawing

406 Series
